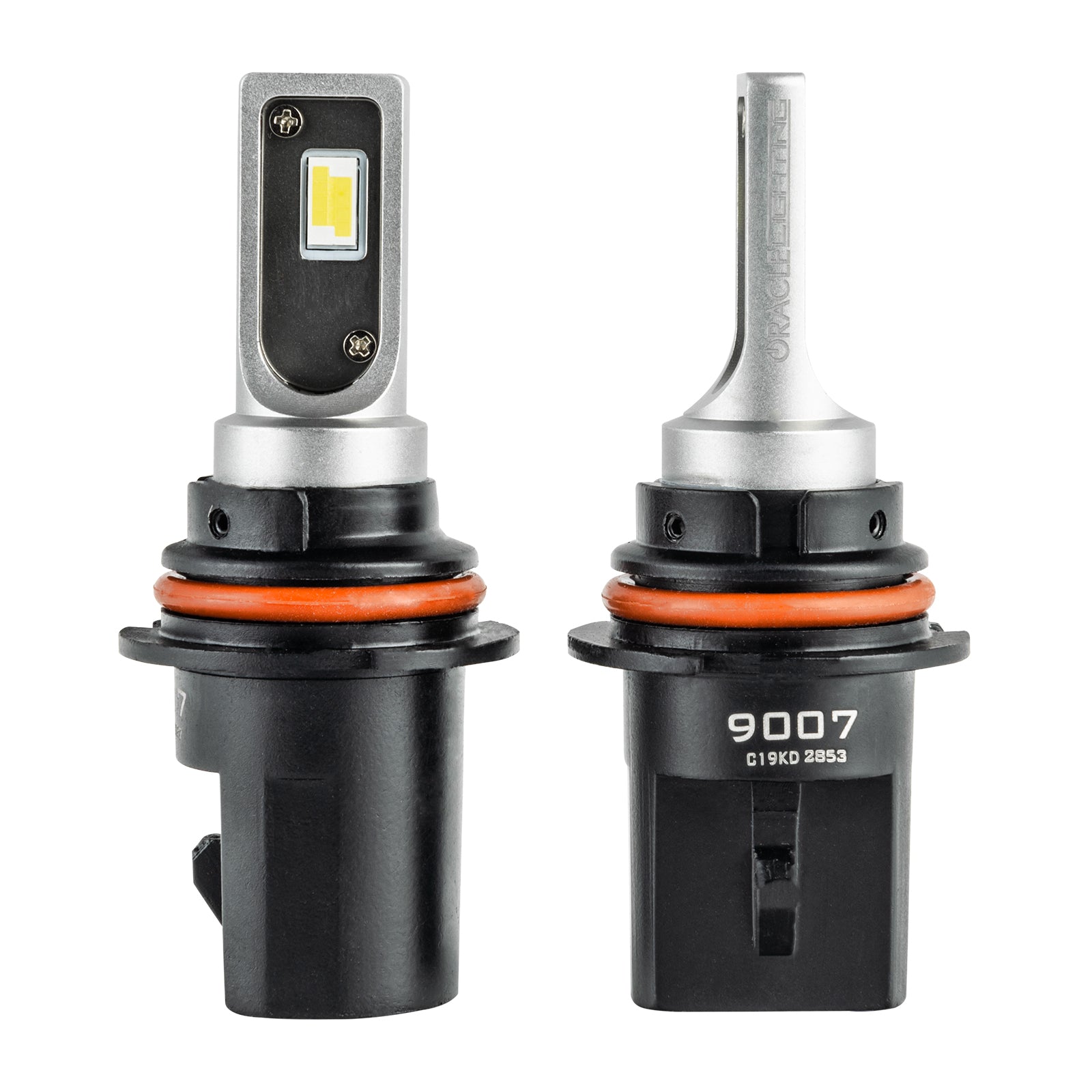

Oracle Lighting V5241-001 9007 - VSeries LED Headlight Bulb Conversion Kit
Oracle Lighting V5241-001 9007 - VSeries LED Headlight Bulb Conversion Kit
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Oracle Lighting V5241-001 9007 - VSeries LED Headlight Bulb Conversion Kit
The new ORACLE Lighting V-Series packs a ton a features to make it not only user-friendly but also an amazing value with the all-new design technology. The V-Series bulbs feature fcCSP Flip-Chip Scale LED Packaging. The advantages of flip-chip technology are multiple: it provides enhanced electrical performance over standard wire bond technology, allows for a smaller form factor due to increased routing density, and eliminates wire-bond loops. An ultra-luminous and extremely efficient light output with superior durability and reliability. This new all-in-one diecast body design mimics the look of the original factory halogen bulb. This allows for easy installation without any additional wiring or external drivers. The die-cast design also provides increased thermal conductivity and heat dissipation to insure long bulb life. V-Series LED bulbs offer even more compatibility by working with vehicles that use the headlight bulb for the DRL function at a reduced voltage. The class-leading 6-32V ultra-wide range voltage protection will allow these LED bulbs to be used in Daytime Running Light Applications without common flicker issues. The V-Series bulb will dim to 50% brightness in DRL mode just like the factory halogen bulb. ORACLE Lightings new V-Series bulbs feature our SmartDrive Active Thermal Regulation temperature management. The integrated constant current linear LED driver inside the bulb uses a system called thermal foldback to protect the LEDs and the bulb components. The LED driver operates from a 6V to 24V input and offers constant current output at up to 1 Amp. Supplementing passive thermal management with active techniques such as this allow for a very small bulb package without risking damage to the LED or creating an environment where the LED lifetime would otherwise be significantly shortened.
- Physically matches original bulb for OEM fitment and easy DIY installation
Specifications
| 89 | 1.42 |
| 111 | 1 |
| 123 | 12 |
| 975 | 17 |
| 1268 | No |
| 1269 | 2 |
| 1270 | Dual Beam |
| 1272 | Silver |
| 1284 | HB5 |
| 1822 | 9007 |
| 2786 | 60000 |
| 5950 | Plastic |
| 8363 | 3600 |
| 9078 | 6000 |
| 9079 | 3200 |
| 9080 | 60000 |
| 9081 | Dual Filament |
| 9082 | 1.42 |
| 9083 | 17 |
| 9084 | 32 |
| 9085 | Dual Filament |
| 9086 | LED |
| 9087 | Clear |
| Amperage Rating | 1.42 |
| Secondary Amperage Rating | 1.42 |
| Secondary Wattage | 17 |
| Wattage | 17 |
| Filament Quantity | 2 |
| Secondary Voltage | 32 |
| Light Color Temperature | 6000 |
| Average Rated Life | 60000 |
| Bulb Finish | Clear |
| Beam Type | Dual Beam |
| Secondary Filament Type | Dual Filament |
| Filament Type | Dual Filament |
| Bulb Base Type | HB5 |
| Bulb Technology | LED |
| DOT Approved | No |
| Bulb Material | Plastic |
| Bulb Material Color | Silver |
| Diameter | 1 |
| Secondary Brightness | 3200 |
| Secondary Average Rated Life | 60000 |
| Prop 65 (C, R or CR) | CR |
| Kelvin Temperature | 6000K |
| Power Draw | 17W |
| Efficacy | 100lm/W |
| DRL Compatible | Yes |
| Bulb Type | 9007 |
| Brightness | 3,600 Lumens |
| Add-On | N/A |
| Voltage | 6-32V DC |
Packaging Information
Weight: 1 lbs
Dimensions: 3 x 5 x 5 IN
Safety
Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
1 Year Warranty
