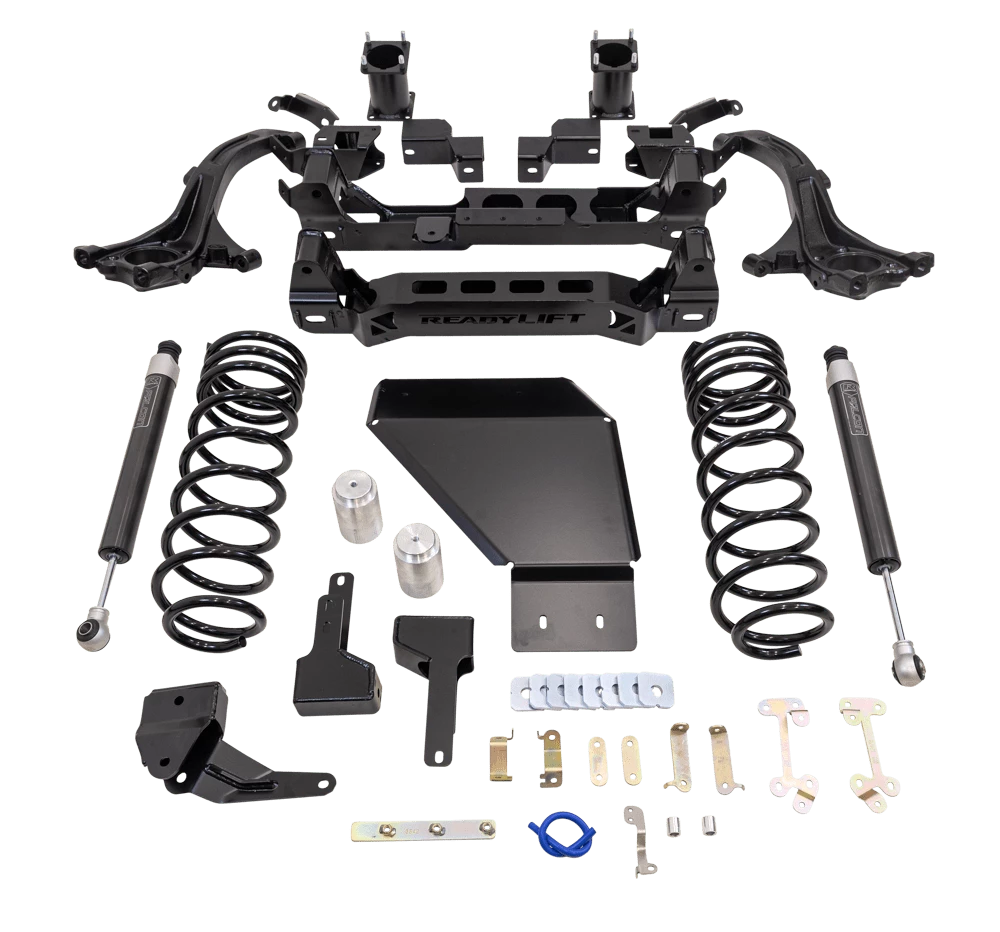

ReadyLift 44-52620 Suspension Lift Kit

ReadyLift 44-52620 Suspension Lift Kit

ReadyLIFT announces two new suspension solutions for the 2022-UP Toyota Tundra with rear coil spring and factory air configurations: 6-inch lift kits. These kits, successful following the Tundra product line, feature Falcon 1.1 monotube shocks, designed for the 2022+ Toyota Tundra. The kits include strong, laser-cut, CNC bent, welded, boxed sub-frame drop assemblies for increased ground clearance and suspension geometry maintenance. The cast iron front knuckles, precision-designed, retain factory tie rods with minimal trimming. The innovative differential drop system ensures easy installation and correct positioning to maintain CV axle and driveline angles. Kits 44-52620 (non-rear air) and 44-52660 (with rear air) prevent premature tire wear by maintaining alignment and geometry. The system includes bump stop extensions and sway bar frame mount brackets for factory geometry retention. These features ensure superior driving and handling. The 6-inch Big Lift allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires and, with trimming, 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires. It includes two Falcon 1.1 monotube rear shocks, retains the factory turning radius, and is compatible with stock 20-inch wheels. Not suitable for the 2022+ Tundra TRD Pro with Bilstein coilover shocks or the TRD rear sway bar option. The kits work only with factory 20" wheels (not 18" wheels), but most aftermarket wheels fit (confirm before installation).

• Allows for 5.75" backspace (1820mm Offset) on 20x9 with 35" tires
• Max tire with trimming 5.5" backspace (1013mm Offset) on 20x9 with 37" tires
• Includes two Falcon 1.1 monotube rear shocks
• Retains factory turning radius
• Allows for use of stock 20'' wheels
• Works with auto adjust headlights
• Not compatible with 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with LoadLeveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)
• Allows for 5.75"" backspace (18 Allows for 5.75"" backspace (1820mm Offset) on 20x9 with 35"" tires
• Max tire with trimming 5.5"" backspace (10 Max tire with trimming 5.5"" backspace (1013mm Offset) on 20x9 with 37"" tires
• Not compatible with 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with Load
• Not compatible with 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, TRD rear sway bar option, or trucks equipped with LoadLeveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)"

Weight: 315 lbs
Dimensions: 48 x 39 x 22 IN
