ReadyLift 49-19420 Suspension Lift Kit

ReadyLift 49-19420 Suspension Lift Kit

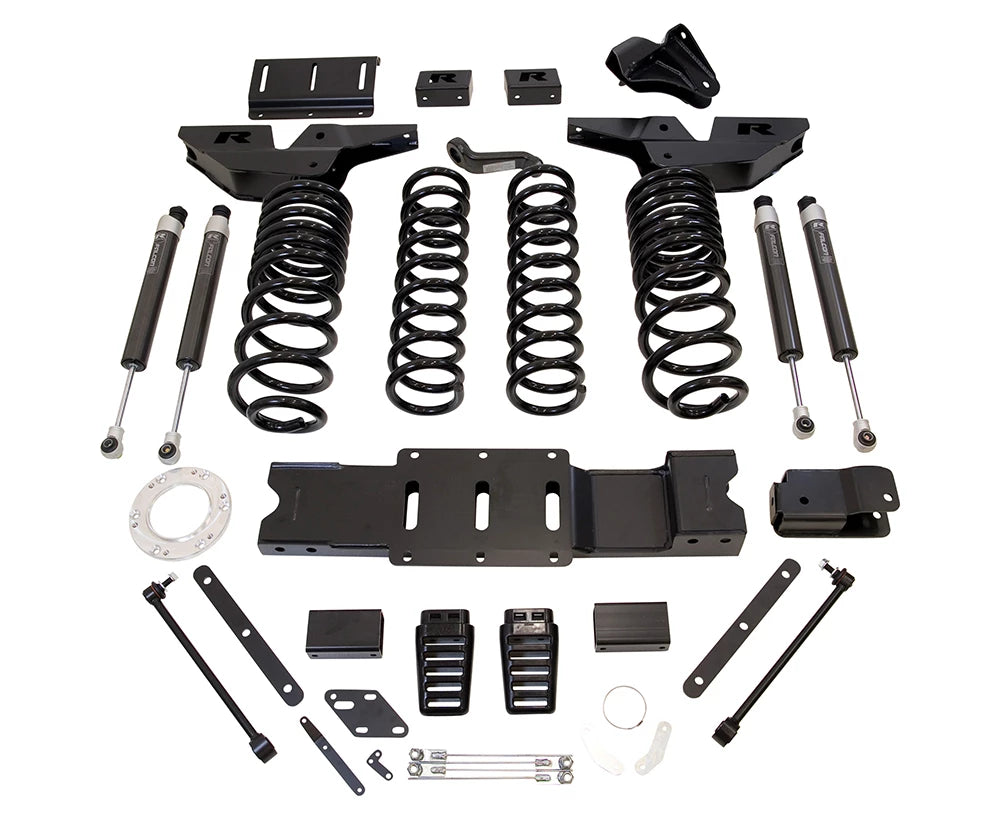

The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire.   Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance.   These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front, and rear (2500 only) track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front & rear shocks.   Both 4.5" Ram HD kits include our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.   The Ram 2500 HD comes with the standard output diesel engine DIS system.   Kit 49-19420 includes everything in our popular 6  lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 4.5" lift front springs, 3" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube shocks front/rear shocks are all included in this premium kit. For use on diesel 2500 trucks only.

• Allnew 20192023 Ram 2500 4WD HD 4.5" lift kit
• 5inch front/3inch rear spring lift kit
• Includes allnew transfer case clocking ring and new heavyduty transmission crossmember
• Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD
• For use on Diesel engine Ram 2500 4WD HD trucks only
• Allows for up to 37x13.50 tires on 20" x 9" wide wheels with 18 offset
• Does not work with Factory Air suspension or Auto Level system (factory helper bags)
• Single Cab configuration has not been validated
• All Allnew 20192023 Ram 2500 4WD HD 4.5"" lift kit
• 54.5inch front/3inch rear spring lift kit
• Includes all Includes allnew transfer case clocking ring and new heavyduty transmission crossmember
• Allows for up to 37x13.50 tires on 20"" x 9"" wide wheels with Allows for up to 37x13.50 tires on 20"" x 9"" wide wheels with 18 offset

Weight: 240 lbs
Dimensions: 47.75 x 12.625 x 24 IN
