TrakMotive

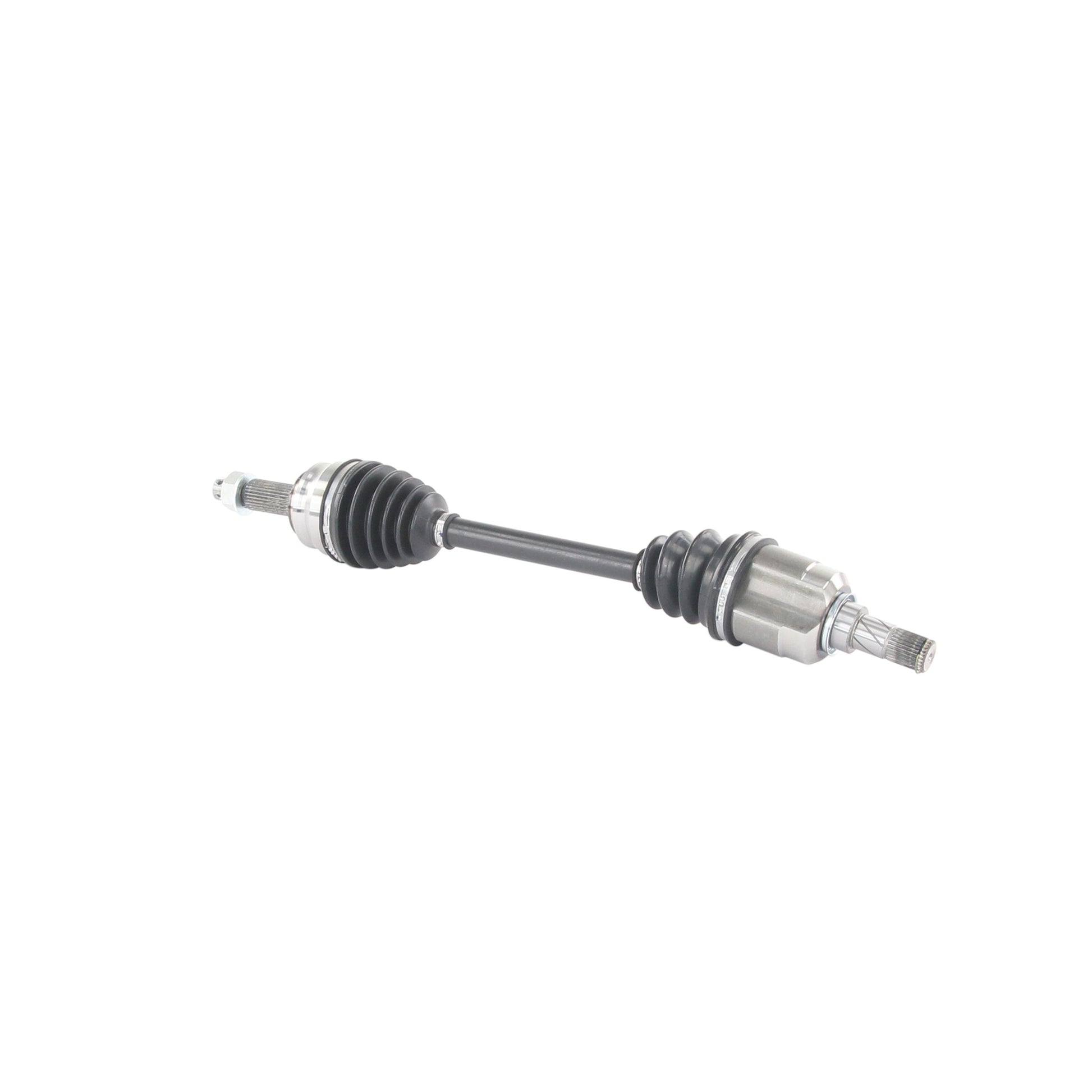

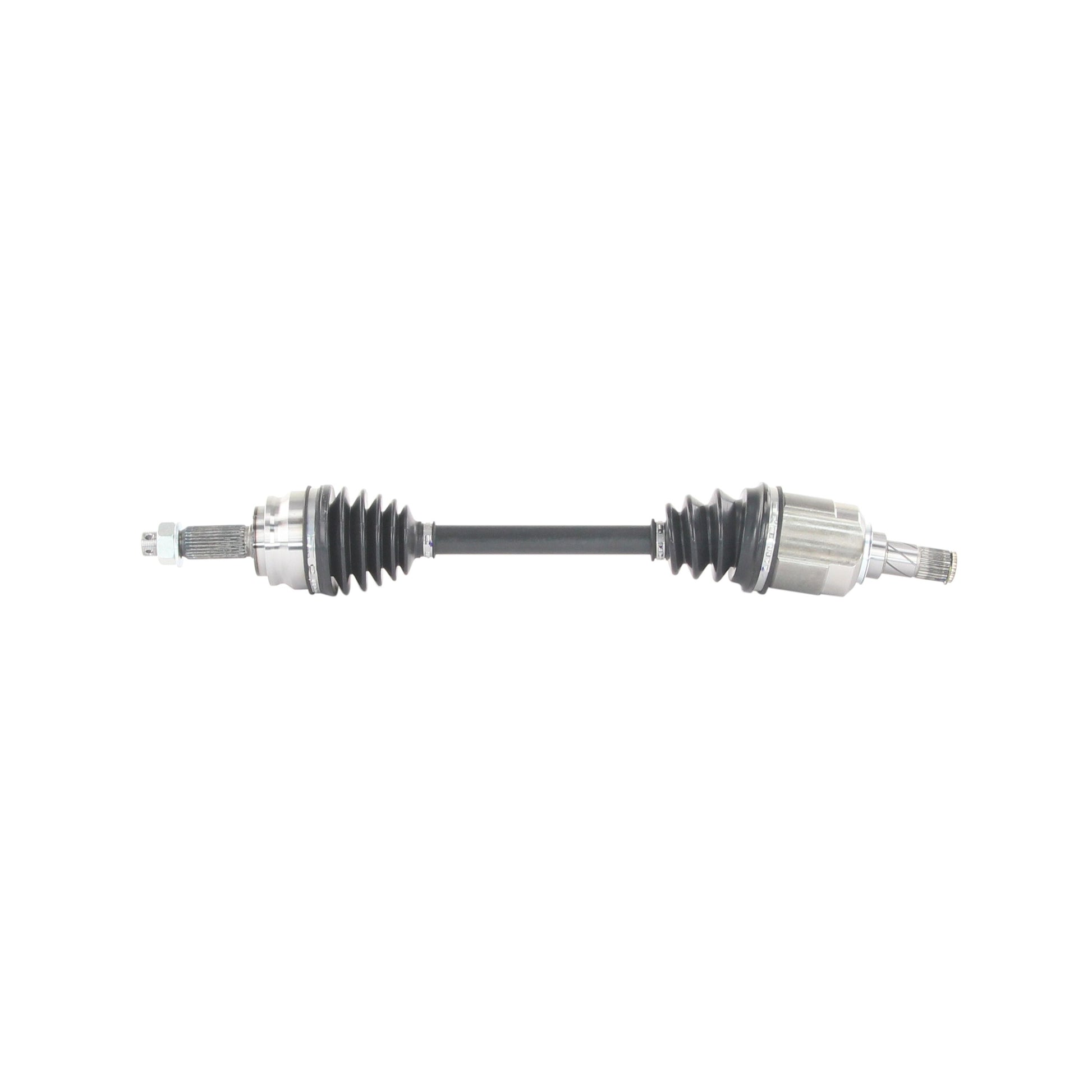

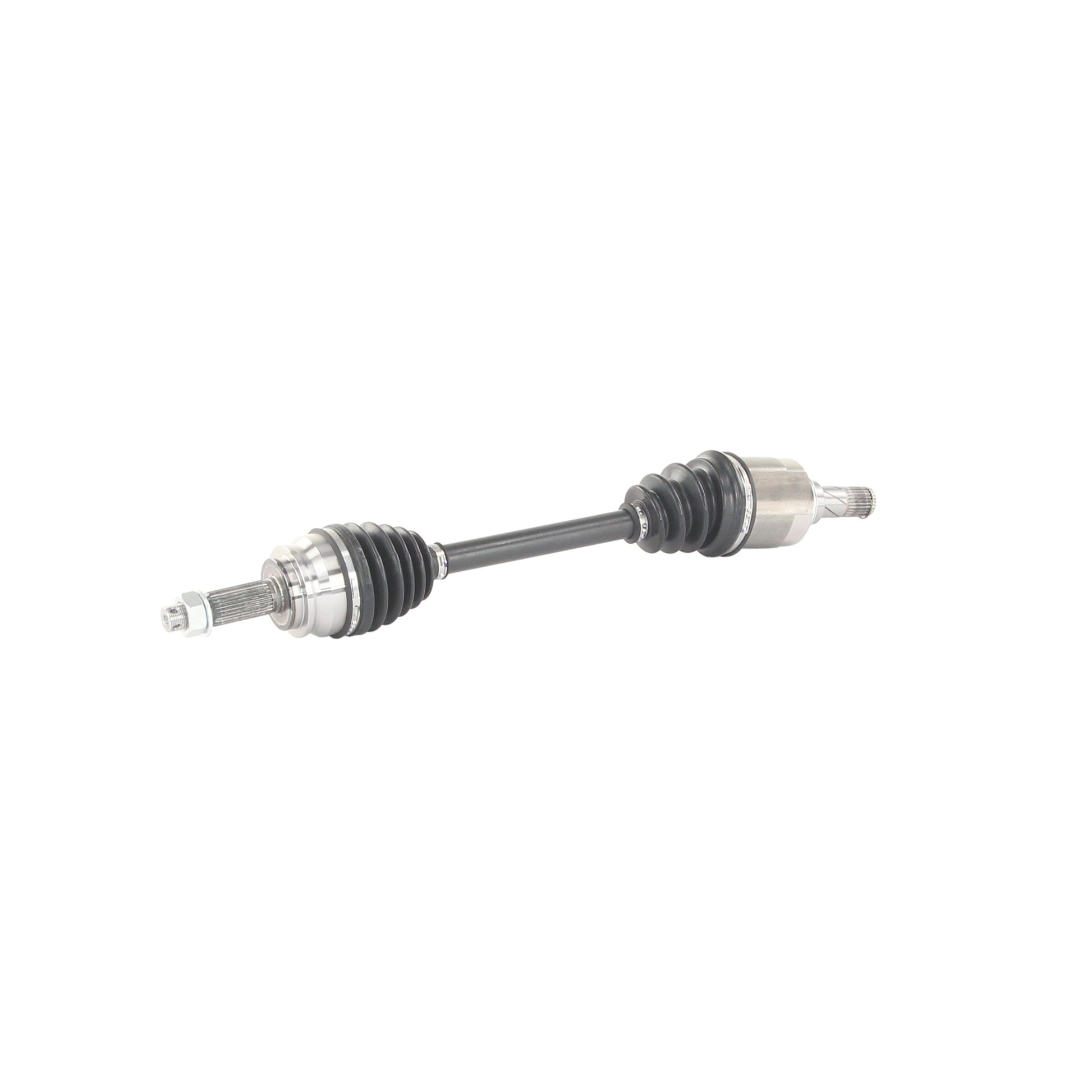

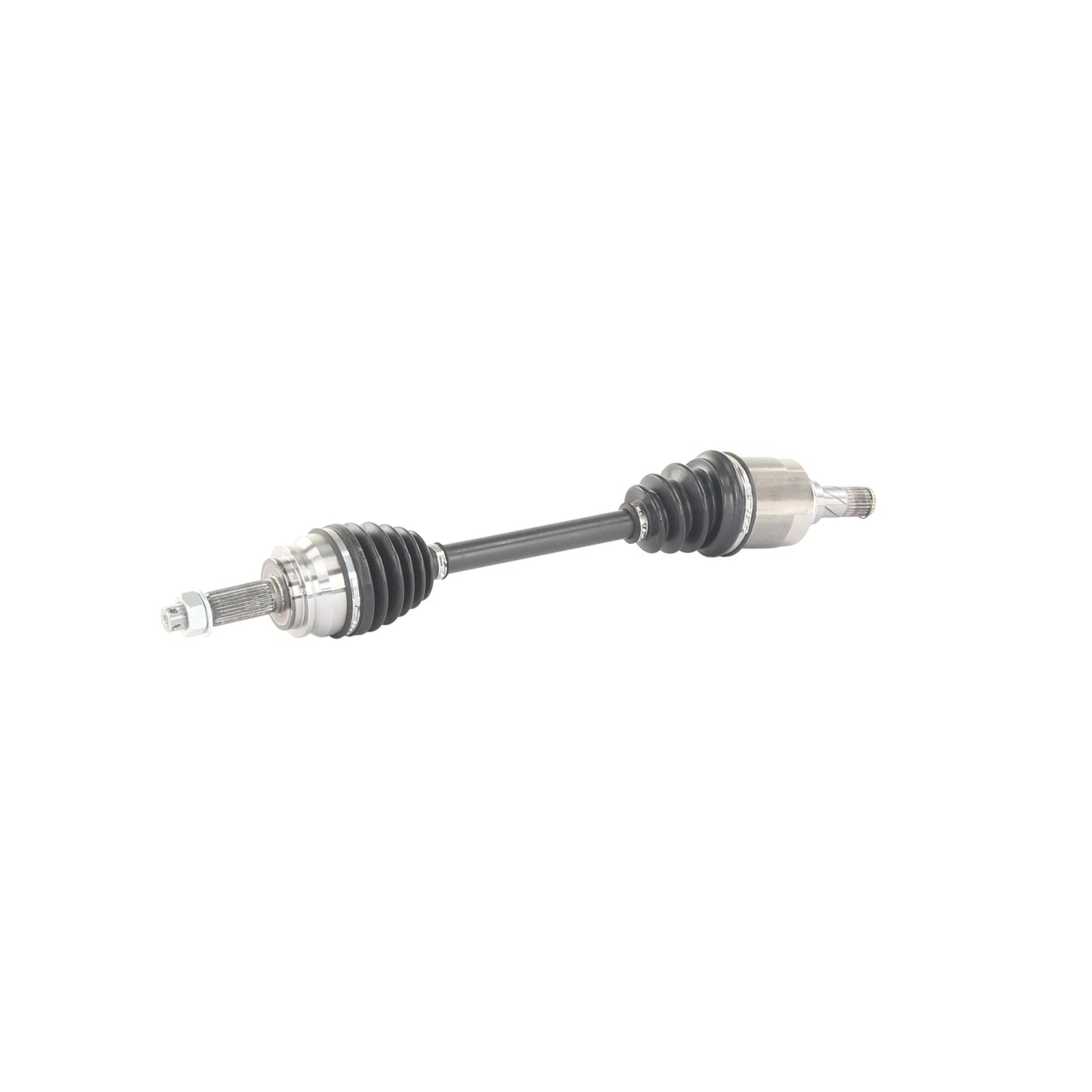

TrakMotive CH-8110 CV Axle Shaft
TrakMotive CH-8110 CV Axle Shaft
Regular price
$99.96 USD
Regular price
$107.65 USD
Sale price
$99.96 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features
TrakMotive CH-8110 CV Axle Shaft
TrakMotive's CH-8110 is a Premium-grade CV axle shaft engineered as a direct OE replacement, front left position. Both inboard and outboard joints use neoprene boots, and the axle nut (M22x1.5 hex, cotter-pin locked) is included — no separate hardware to source. Fits 2007-2012 Dodge Caliber, 2007-2022 Jeep Compass, and 2007-2017 Jeep Patriot.
- Premium grade — OE replacement CV axle
- Neoprene boots, inboard and outboard joints
- Axle nut included — M22x1.5, hex head, cotter-pin locked
- Front left position
- Fits 2007-2012 Dodge Caliber, 2007-2022 Jeep Compass, 2007-2017 Jeep Patriot
Specifications
| ABS Ring Tooth Count | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Shaft Connection Style | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Shaft Bolts | 0 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (mm) | 638 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .6 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.12 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2007-2012 DODGE CALIBER — Front Left
- 2007-2022 JEEP COMPASS — Front Left
- 2007-2017 JEEP PATRIOT — Front Left
