TrakMotive FD-8027 CV Axle Shaft
TrakMotive FD-8027 CV Axle Shaft
Regular price
$105.97 USD
Regular price
$114.12 USD
Sale price
$105.97 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features

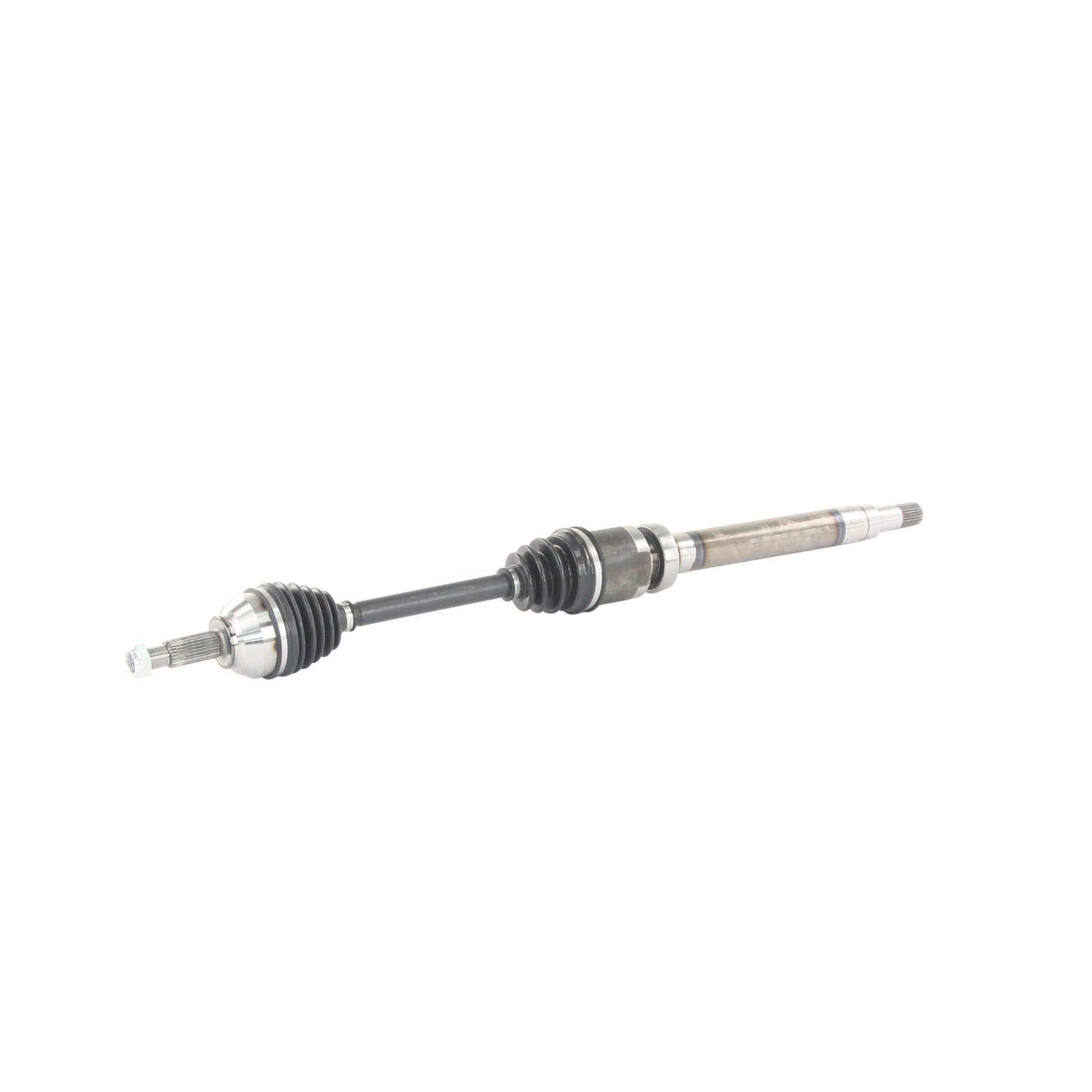

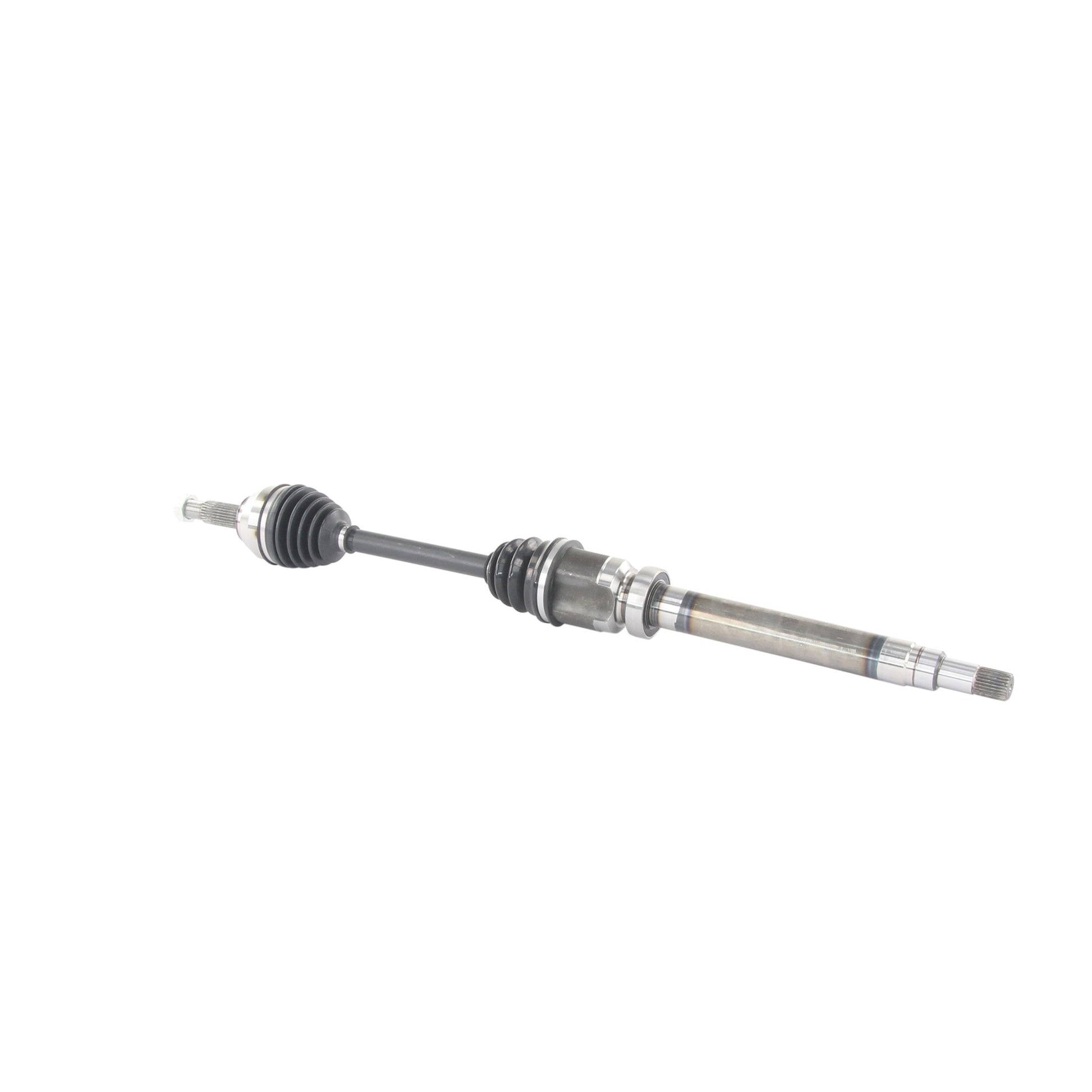

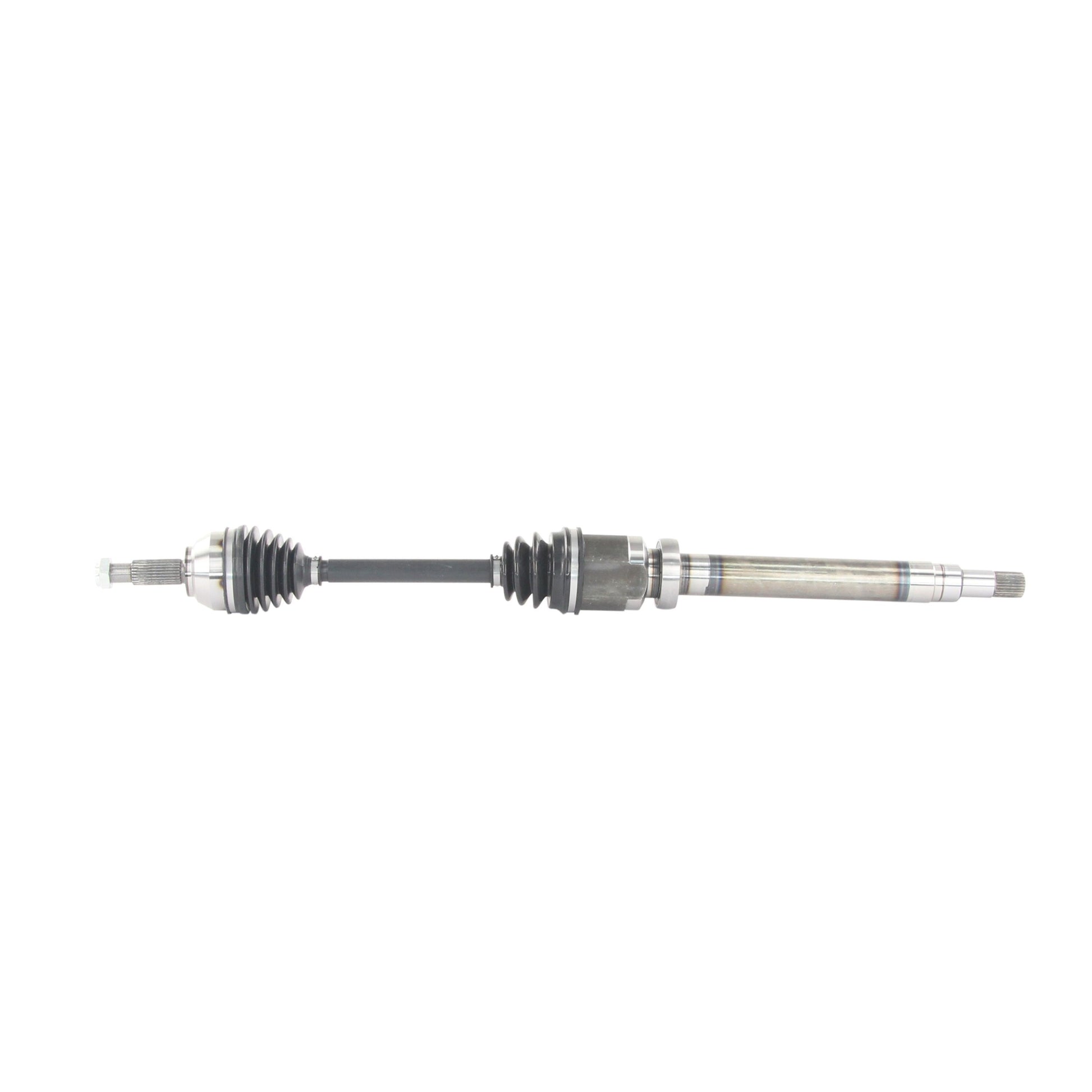

TrakMotive FD-8027 CV Axle Shaft
TrakMotive's FD-8027 is a Premium-grade CV axle shaft engineered as a direct OE replacement. Both inboard and outboard joints use neoprene boots, and the axle nut (M22x1.5 hex, self-locking) is included — no separate hardware to source. Backed by TrakMotive's Limited Lifetime Warranty. Fits 2000-2011 Ford Focus, front right position; 2006 and later models require automatic transmission.
- Premium grade — OE replacement CV axle
- Neoprene boots, inboard and outboard joints
- Axle nut included — M22x1.5, hex head, self-locking
- TrakMotive Limited Lifetime Warranty
- Fits 2000-2011 Ford Focus, front right position (2006+ requires automatic transmission)
Specifications
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .6 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 37.4 |
| Overall Compressed Length (mm) | 950 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2000-2005 FORD FOCUS — Front Right
- 2006-2011 FORD FOCUS Automatic Trans — Front Right
