TrakMotive

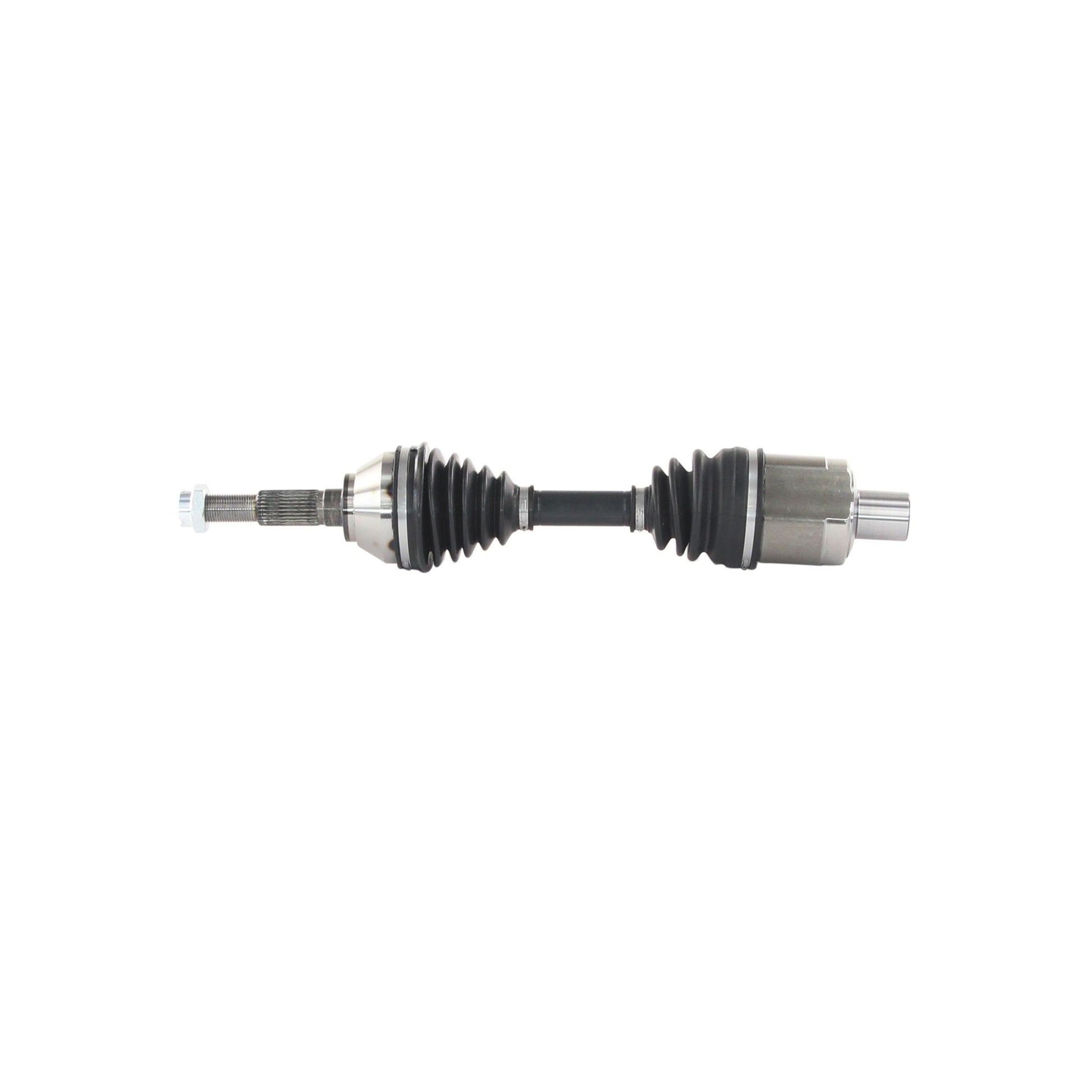

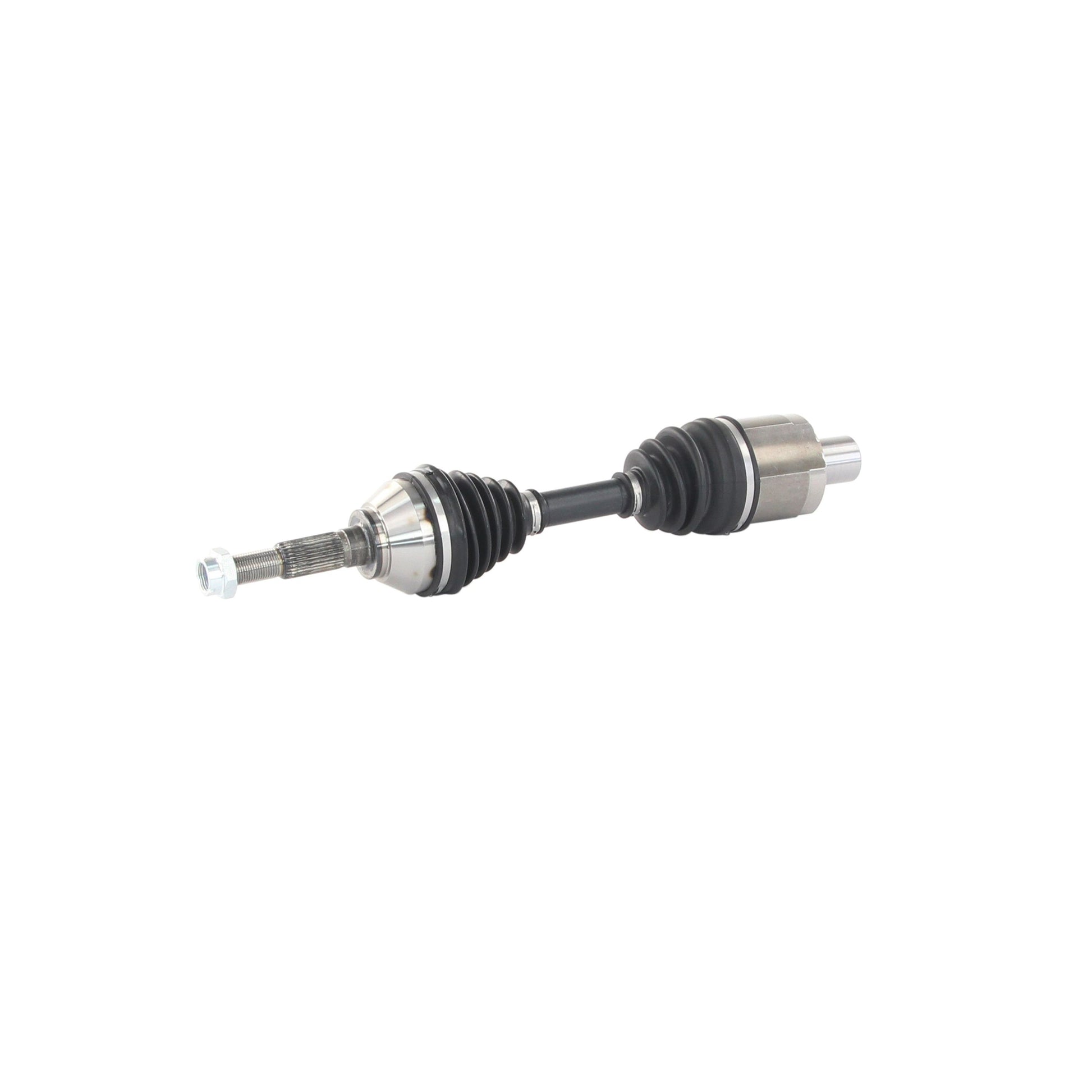

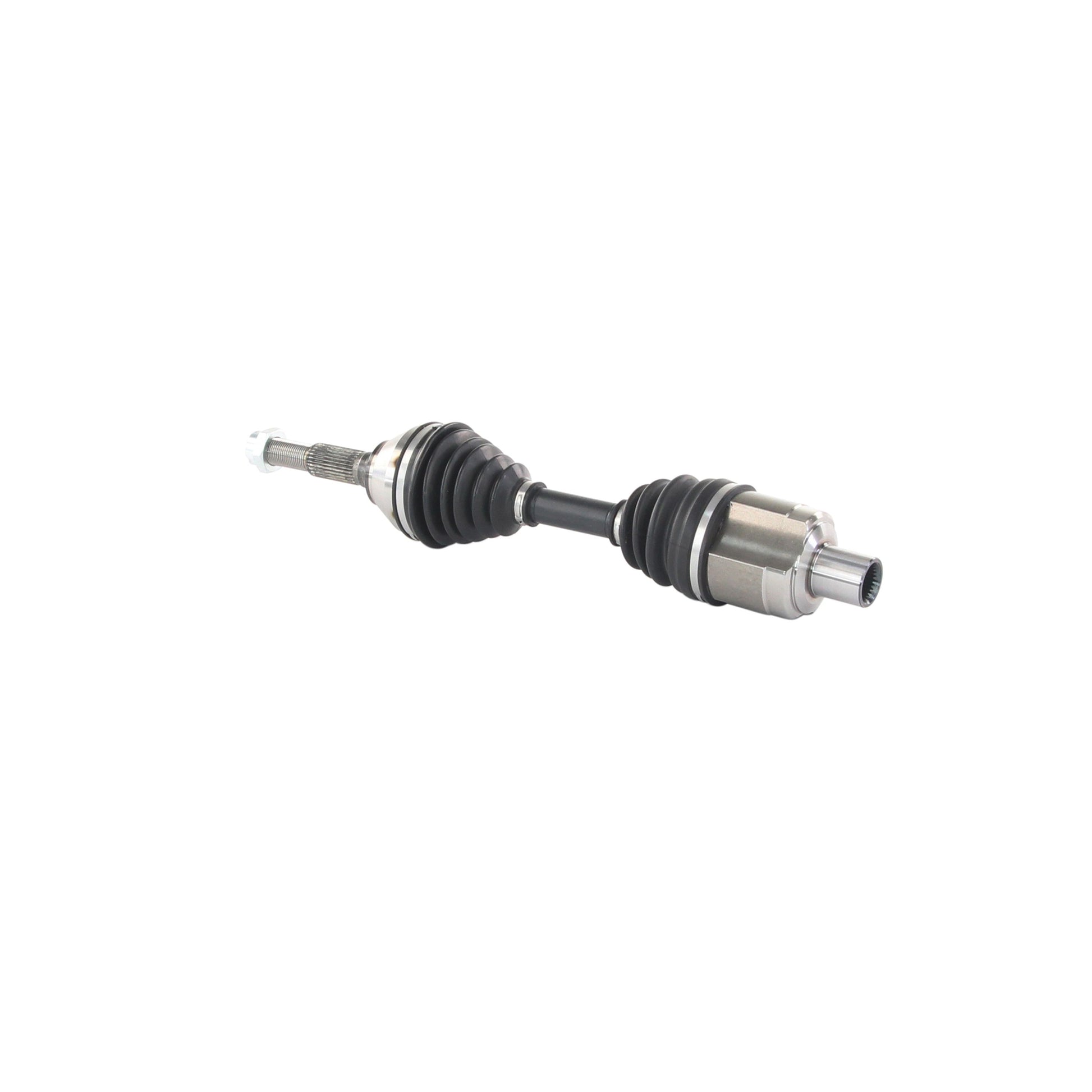

TrakMotive GM-8047 CV Axle Shaft
TrakMotive GM-8047 CV Axle Shaft
Regular price
$85.69 USD
Regular price
$92.28 USD
Sale price
$85.69 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features
TrakMotive GM-8047 CV Axle Shaft
TrakMotive's GM-8047 is a Premium-grade CV axle shaft engineered as a direct OE replacement, front right position. Fits 1997-2005 Chevrolet Blazer, 1997-2004 Chevrolet S10, 1997-2001 GMC Jimmy, 1997-2004 GMC Sonoma, 1998-2000 Isuzu Hombre, and 1997-2001 Oldsmobile Bravada. Not for ZR2 off-road package models.
- Premium grade — OE replacement CV axle
- Front right position
- Fits Chevrolet Blazer/S10, GMC Jimmy/Sonoma, Isuzu Hombre, Oldsmobile Bravada
- Not for ZR2 off-road package
Specifications
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .86 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.43 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 21.5 |
| Overall Compressed Length (mm) | 546 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 1997-2002 CHEVROLET BLAZER — Front Right
- 2003 CHEVROLET BLAZER LS — Front Right
- 2003-2005 CHEVROLET BLAZER ZR2 — Front Right
- 1997-2003 CHEVROLET S10 Base — Front Right
- 1997-2004 CHEVROLET S10 LS — Front Right
- 2002-2004 CHEVROLET S10 ZR5 — Front Right
- 1997-2001 GMC JIMMY — Front Right
- 1997-2004 GMC SONOMA — Front Right
- 1998-2000 ISUZU HOMBRE — Front Right
- 1997-2001 OLDSMOBILE BRAVADA — Front Right
