TrakMotive GM-8161 CV Axle Shaft
TrakMotive GM-8161 CV Axle Shaft
Regular price
$82.89 USD
Regular price
$89.26 USD
Sale price
$82.89 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features

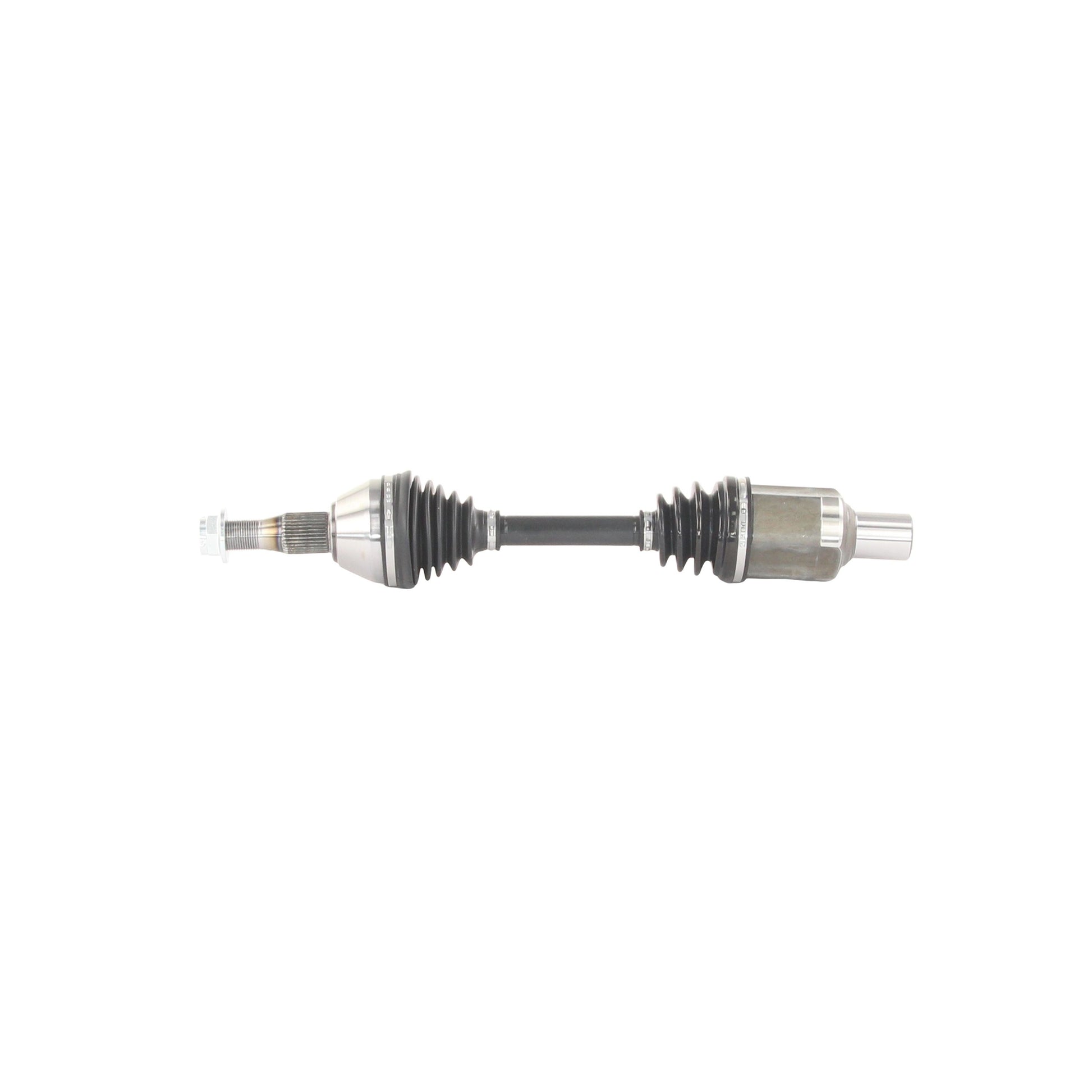

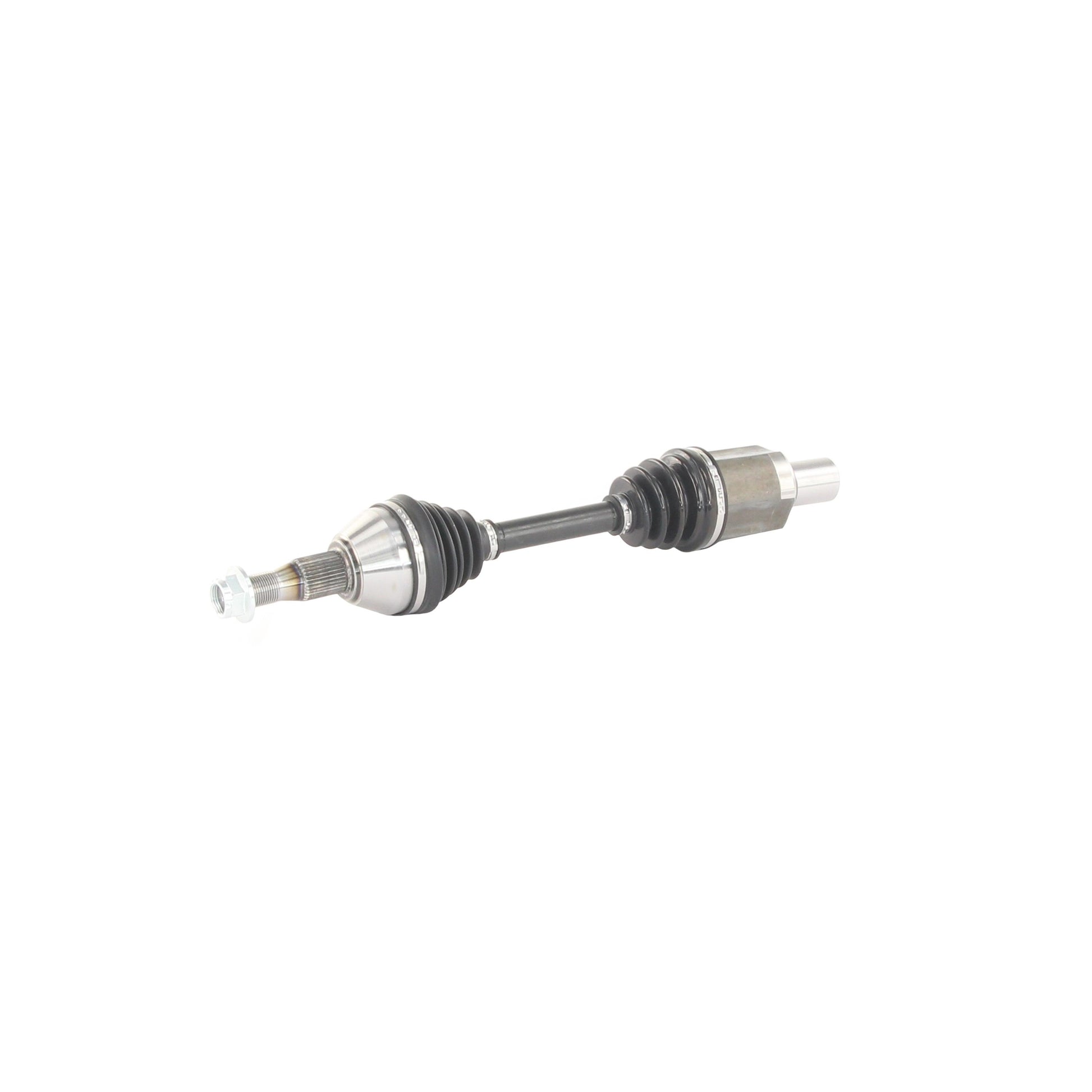

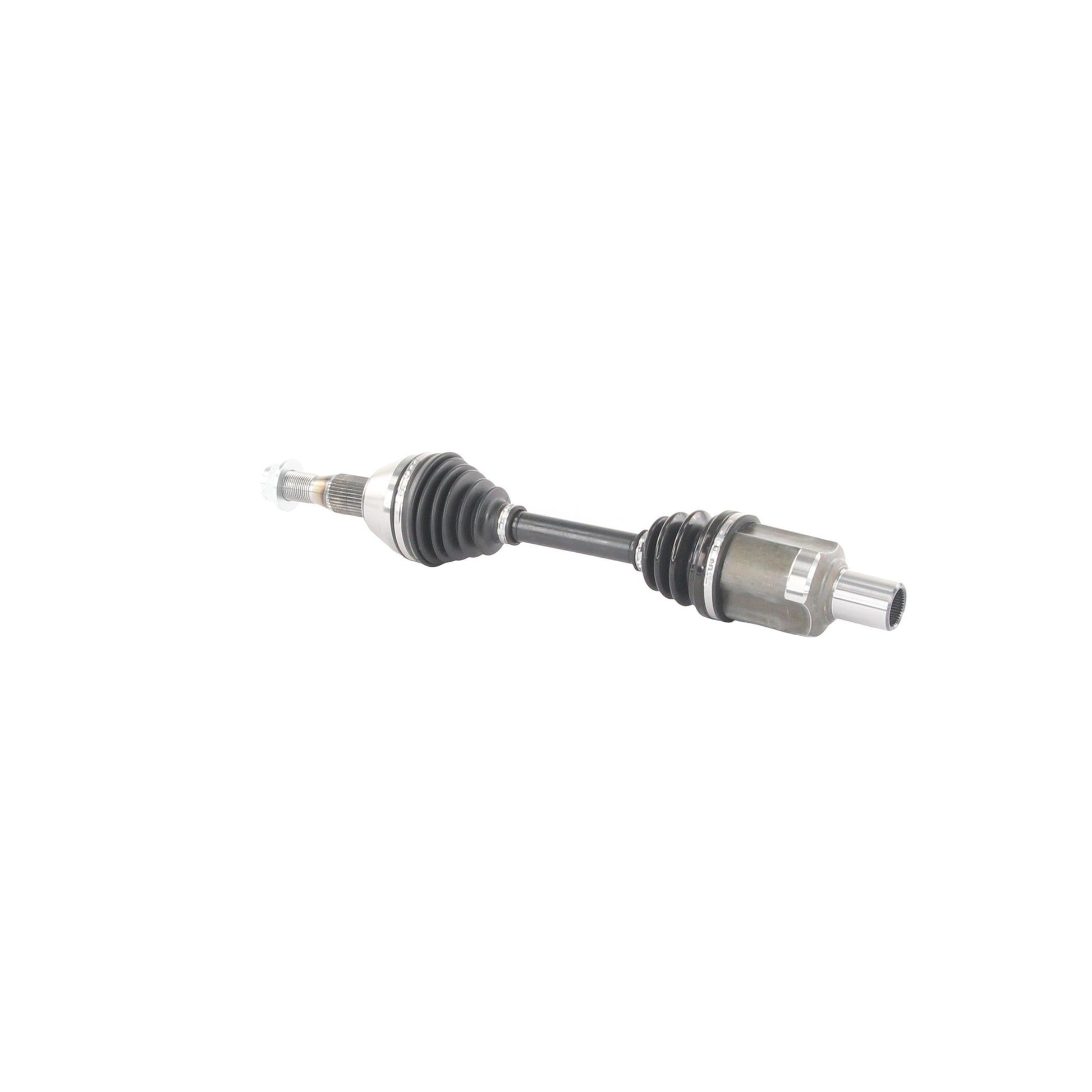

TrakMotive GM-8161 CV Axle Shaft
TrakMotive's GM-8161 is a Premium-grade CV axle shaft engineered as a direct OE replacement, fitting either the front-left or front-right position. Fits the GM full-size platform: 2006-2011 Buick Lucerne, 2000-2005 Cadillac DeVille, 2006-2011 Cadillac DTS, 2000-2004 Cadillac Seville, 1995-2003 Oldsmobile Aurora, and 2004-2005 Pontiac Bonneville. DeVille/DTS applications are for vehicles without HD Suspension.
- Premium grade — OE replacement CV axle
- Fits either front-left or front-right position
- Fits GM full-size platform: Buick Lucerne, Cadillac DeVille/DTS/Seville, Oldsmobile Aurora, Pontiac Bonneville
- DeVille/DTS: without HD Suspension only
Specifications
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .86 |
| Axle Nut Hex Size (in) | 1.29 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 38 |
| Axle Nut Socket Size | 33 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 22.13 |
| ABS Ring Tooth Count | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 33 |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27x2 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Shaft Connection Style | Female |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 41 |
| Number Of Outboard Shaft Bolts | 0 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (mm) | 562 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2006-2011 BUICK LUCERNE — Front Left
- 2006-2011 BUICK LUCERNE — Front Right
- 2000-2005 CADILLAC DEVILLE — Front Left
- 2000-2005 CADILLAC DEVILLE — Front Right
- 2006-2011 CADILLAC DTS — Front Left
- 2006-2011 CADILLAC DTS — Front Right
- 2000-2004 CADILLAC SEVILLE — Front Left
- 2000-2004 CADILLAC SEVILLE — Front Right
- 1995-1999 OLDSMOBILE AURORA — Front Left
- 2001-2003 OLDSMOBILE AURORA — Front Left
- 1995-1999 OLDSMOBILE AURORA — Front Right
- 2001-2003 OLDSMOBILE AURORA — Front Right
- 2004-2005 PONTIAC BONNEVILLE — Front Left
- 2004-2005 PONTIAC BONNEVILLE — Front Right
