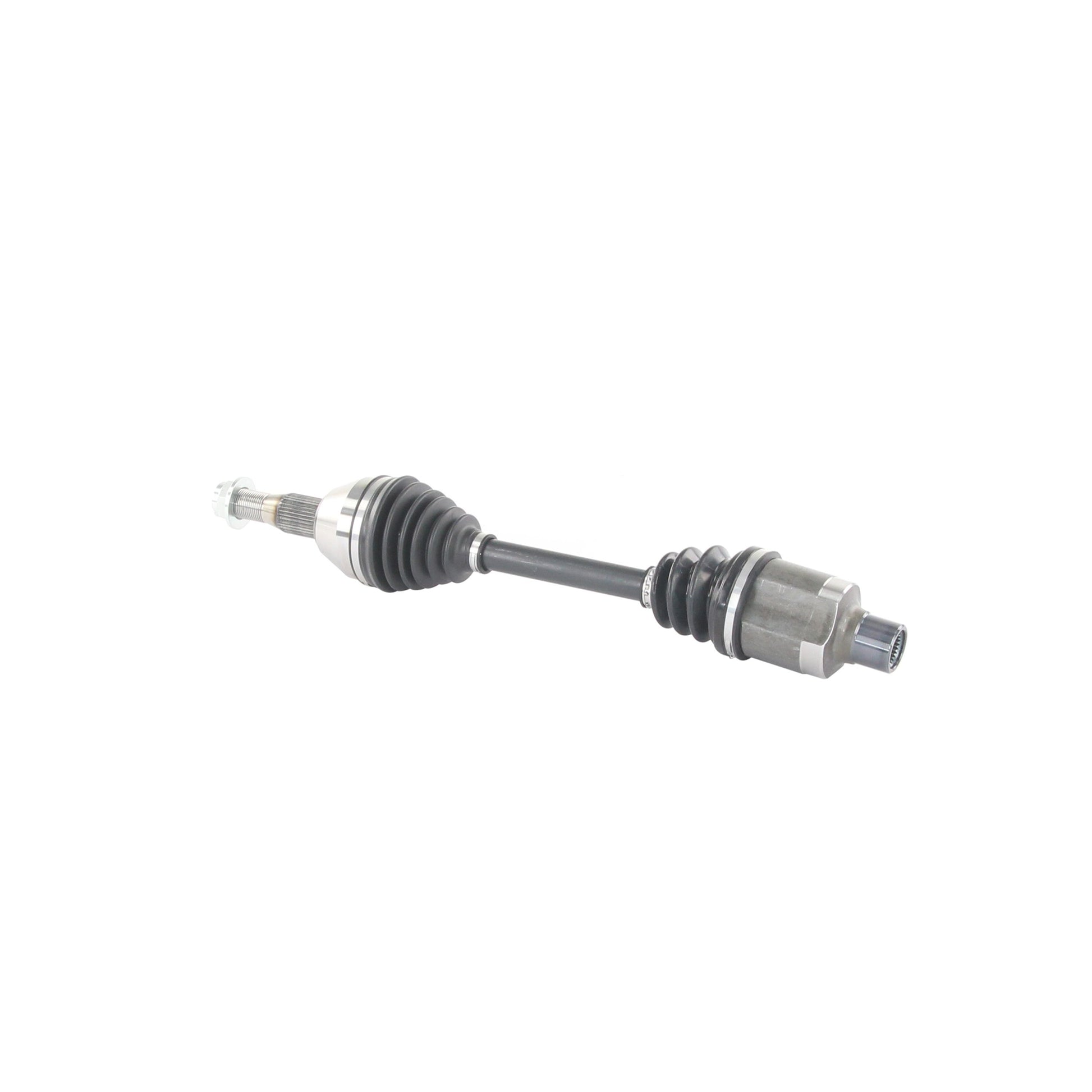

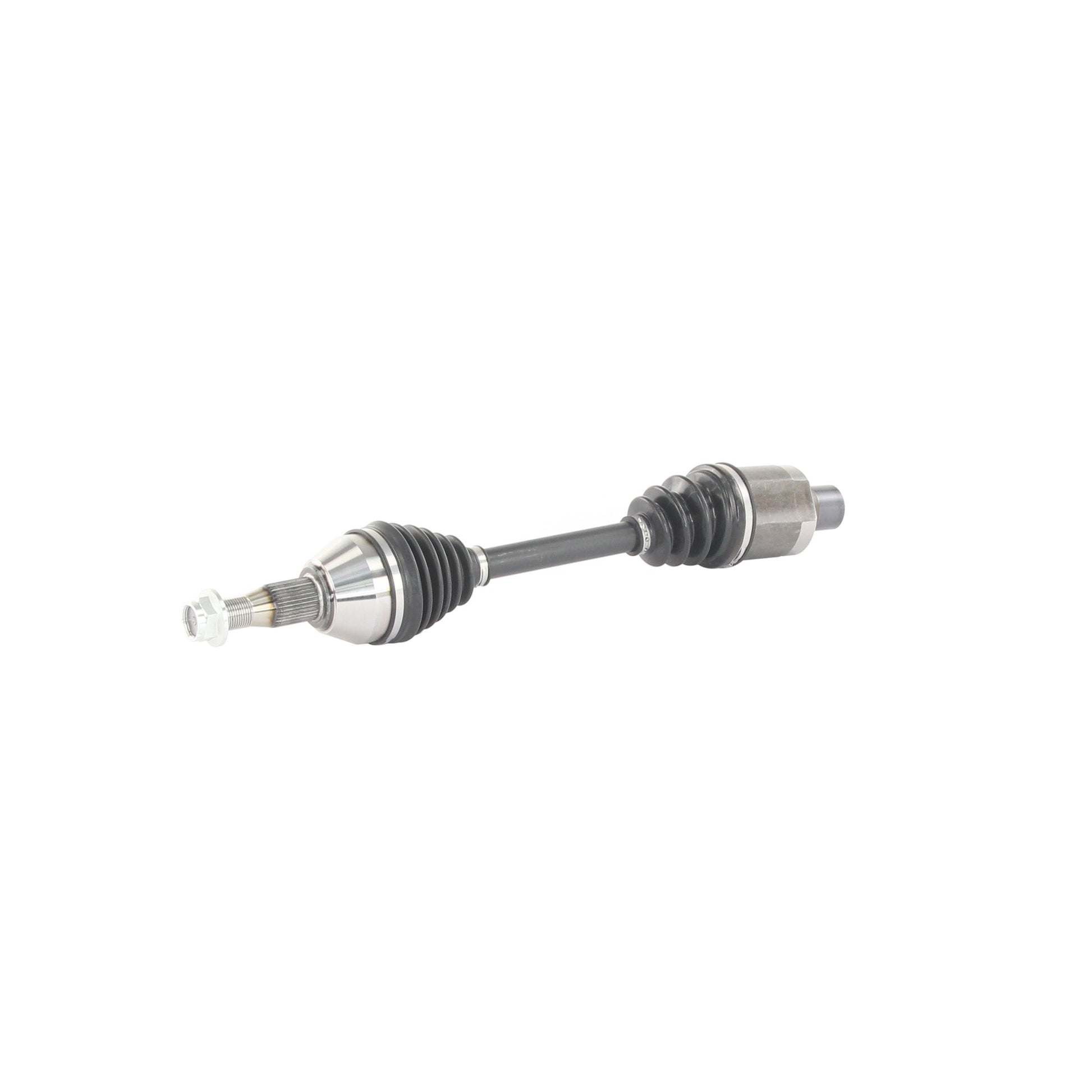

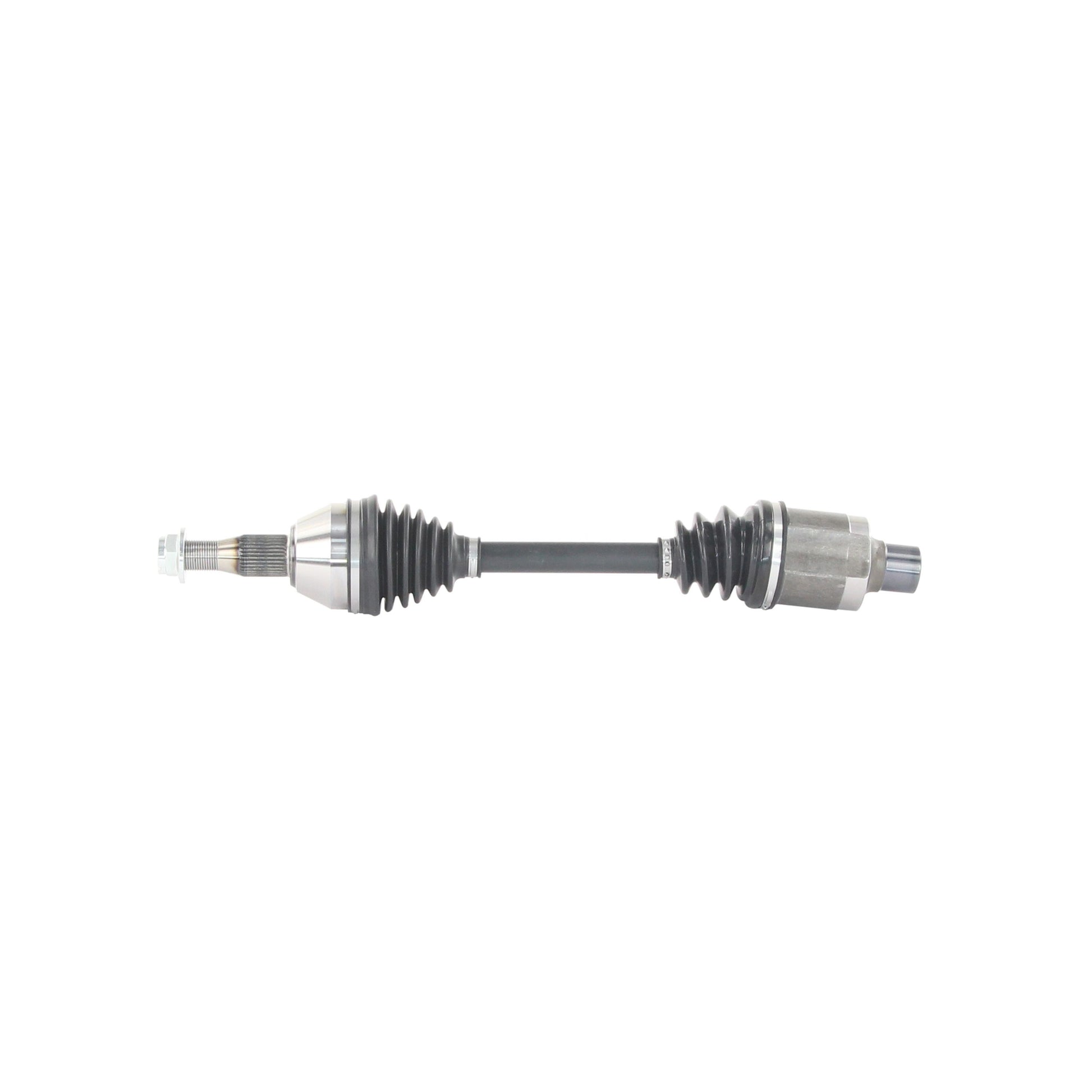

TrakMotive GM-8238 CV Axle Shaft
TrakMotive GM-8238 CV Axle Shaft
Regular price
$145.96 USD
Regular price
$157.18 USD
Sale price
$145.96 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features
TrakMotive GM-8238 CV Axle Shaft
TrakMotive's GM-8238 is a Premium-grade CV axle shaft engineered as a direct OE replacement, front right position. Both inboard and outboard joints use neoprene boots, and the axle nut (M27x2 hex, self-locking) is included — no separate hardware to source. Backed by TrakMotive's Limited Lifetime Warranty. Fits the GM Lambda platform: 2008-2017 Buick Enclave, 2009-2017 Chevrolet Traverse, 2007-2023 GMC Acadia, and 2007-2010 Saturn Outlook.
- Premium grade — OE replacement CV axle
- Neoprene boots, inboard and outboard joints
- Axle nut included — M27x2, hex head, self-locking
- TrakMotive Limited Lifetime Warranty
- Fits GM Lambda platform: Buick Enclave, Chevrolet Traverse, GMC Acadia, Saturn Outlook — front right position
Specifications
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .86 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.29 |
| Axle Nut Hex Size (mm) | 33 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Length (mm) | 38 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Socket Size | 33 |
| Axle Nut Thread Size | M27x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.9 |
| Overall Compressed Length (mm) | 607 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2008-2017 BUICK ENCLAVE — Front Right
- 2009-2017 CHEVROLET TRAVERSE — Front Right
- 2007-2023 GMC ACADIA — Front Right
- 2007-2010 SATURN OUTLOOK — Front Right
