TrakMotive HY-8077 CV Axle Shaft
TrakMotive HY-8077 CV Axle Shaft
Regular price
$78.77 USD
Regular price
$84.83 USD
Sale price
$78.77 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features

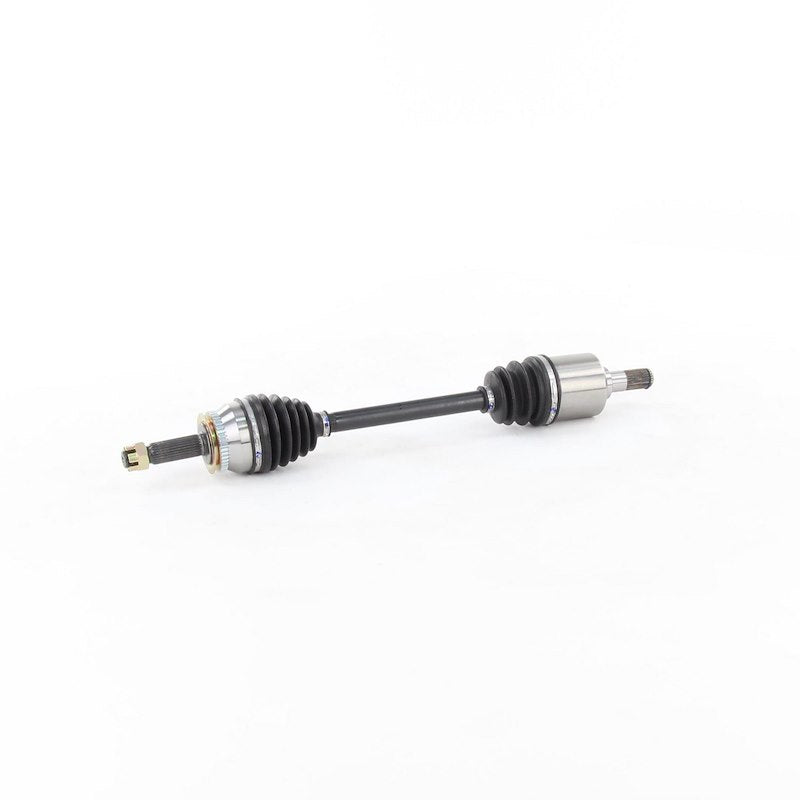

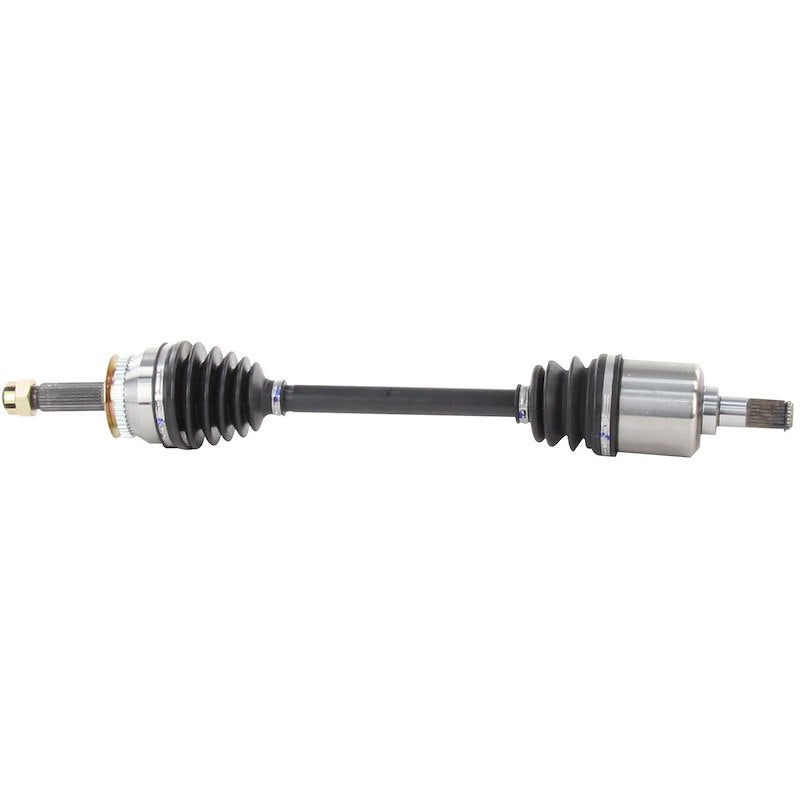

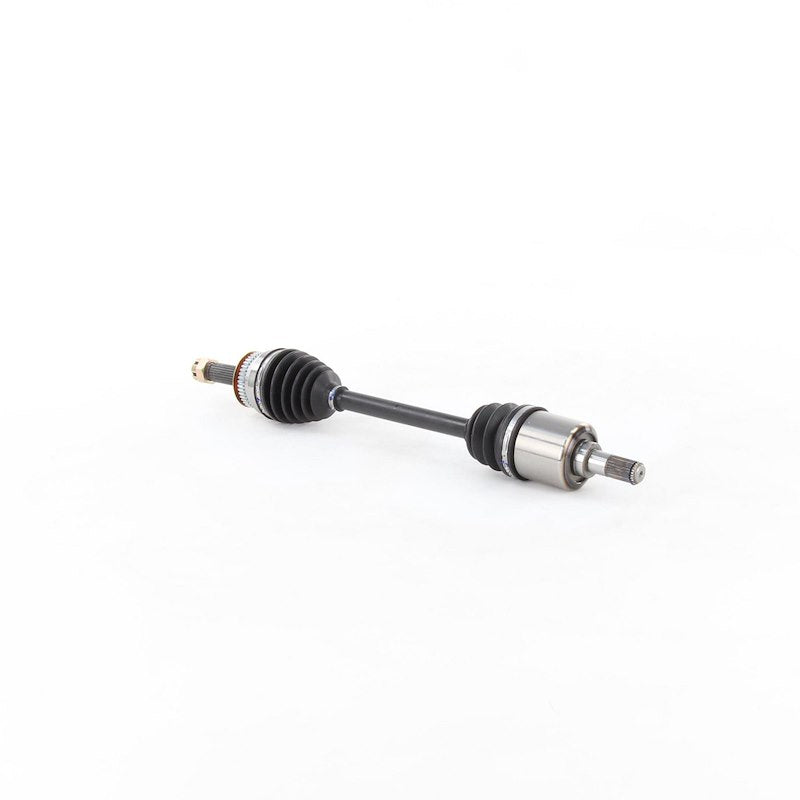

TrakMotive HY-8077 CV Axle Shaft
TrakMotive's HY-8077 is a Premium-grade CV axle shaft engineered as a direct OE replacement, front left position, 25-spline inboard joint, automatic transmission only. Fits 2001-2006 Hyundai Elantra, 2003-2008 Hyundai Tiburon, 2004-2006 Kia Spectra, and 2005-2006 Kia Spectra5.
- Premium grade — OE replacement CV axle
- Front left position, 25-spline inboard joint
- Automatic transmission applications only
- Fits Hyundai Elantra/Tiburon, Kia Spectra/Spectra5
Specifications
| Outboard Shaft Connection Style | Conventional |
| Number Of Inboard Splines | 25 |
| Number Of Inboard Joint Bolt Holes | N/A |
| Number Of Bolt Holes | N/A |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Joint Type | Male |
| ABS Tone Ring Included | Yes |
| Number Of Outboard Shaft Bolts | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Inboard Bolt Length (in) | N/A |
| Overall Compressed Length (mm) | 649.5 |
| Outboard Bolt Head Type | N/A |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Nut Height (mm) | 22 |
| Outboard Joint Bolt Thread Size | N/A |
| Number Of Outboard Splines | 25 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Head Type | Hex |
| Outboard Joint Type | Conventional |
| Axle Nut Height (in) | 0.86 |
| Inboard Bolt Thread Size | N/A |
| Number Of Inboard Shaft Bolts | N/A |
| Axle Nut Included | Yes |
| ABS Ring Tooth Count | 44 |
| Inboard Bolt Length (mm) | N/A |
| Outboard Bolt Length (in) | N/A |
| Axle Nut Length (in) | 1 1/2 |
| Outboard Bolt Length (mm) | N/A |
| Number Of Outboard Joint Bolt Holes | N/A |
| Overall Compressed Length (in) | 25.57 |
| Inboard Bolt Head Size (in) | N/A |
| ABS Ring Type | Toothed |
| Outboard Bolt Head Size (in) | N/A |
| Axle Bolt Thread Size | N/A |
| Inboard Shaft Connection Style | Male |
| Inboard Bolt Head Size (mm) | N/A |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Length (mm) | 37 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2001-2006 HYUNDAI ELANTRA — Front Left
- 2003-2008 HYUNDAI TIBURON — Front Left
- 2004-2006 KIA SPECTRA — Front Left
- 2005-2006 KIA SPECTRA5 — Front Left
