TrakMotive
TrakMotive HY-8243 CV Axle Shaft
TrakMotive HY-8243 CV Axle Shaft
Regular price
$146.40 USD
Regular price
$157.66 USD
Sale price
$146.40 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features

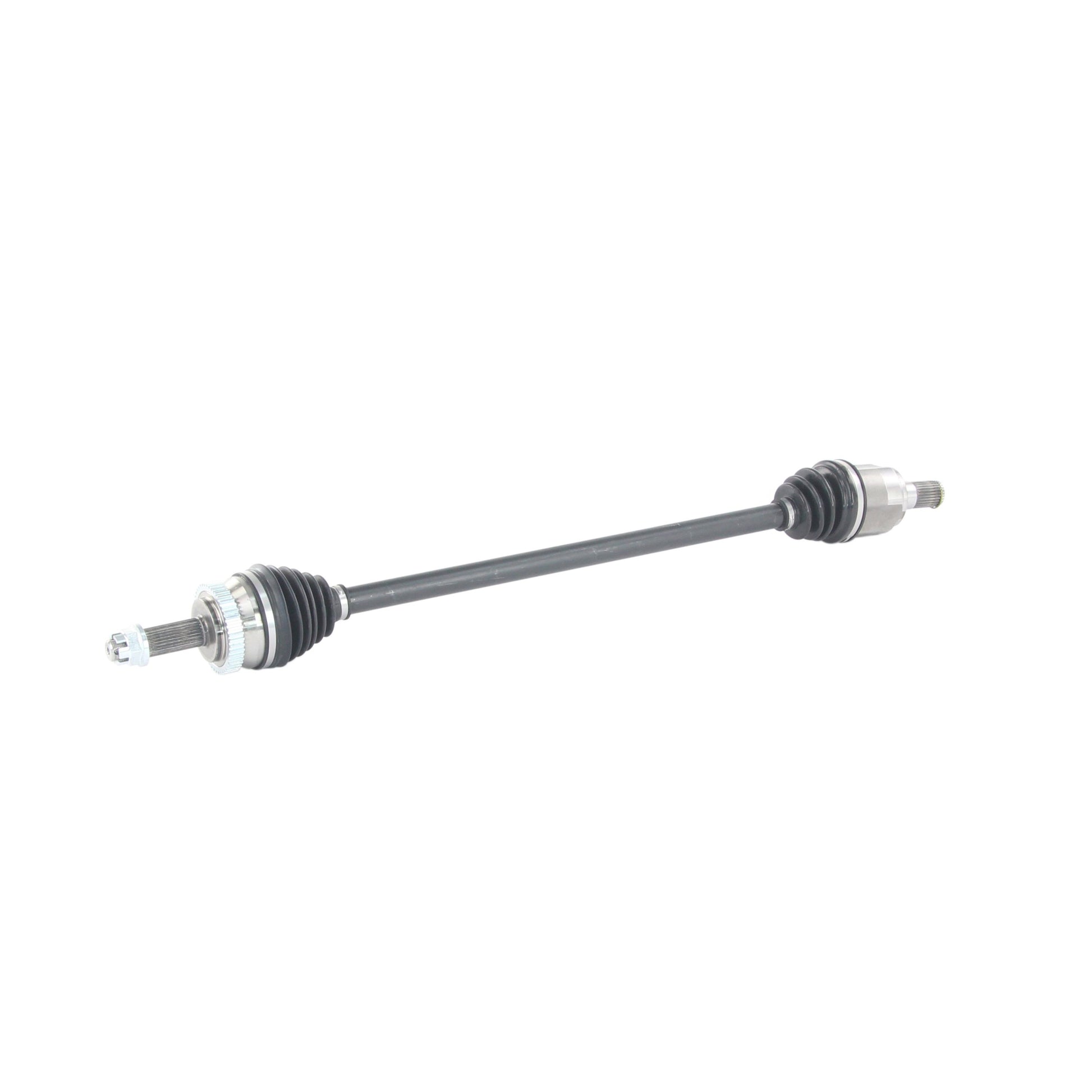

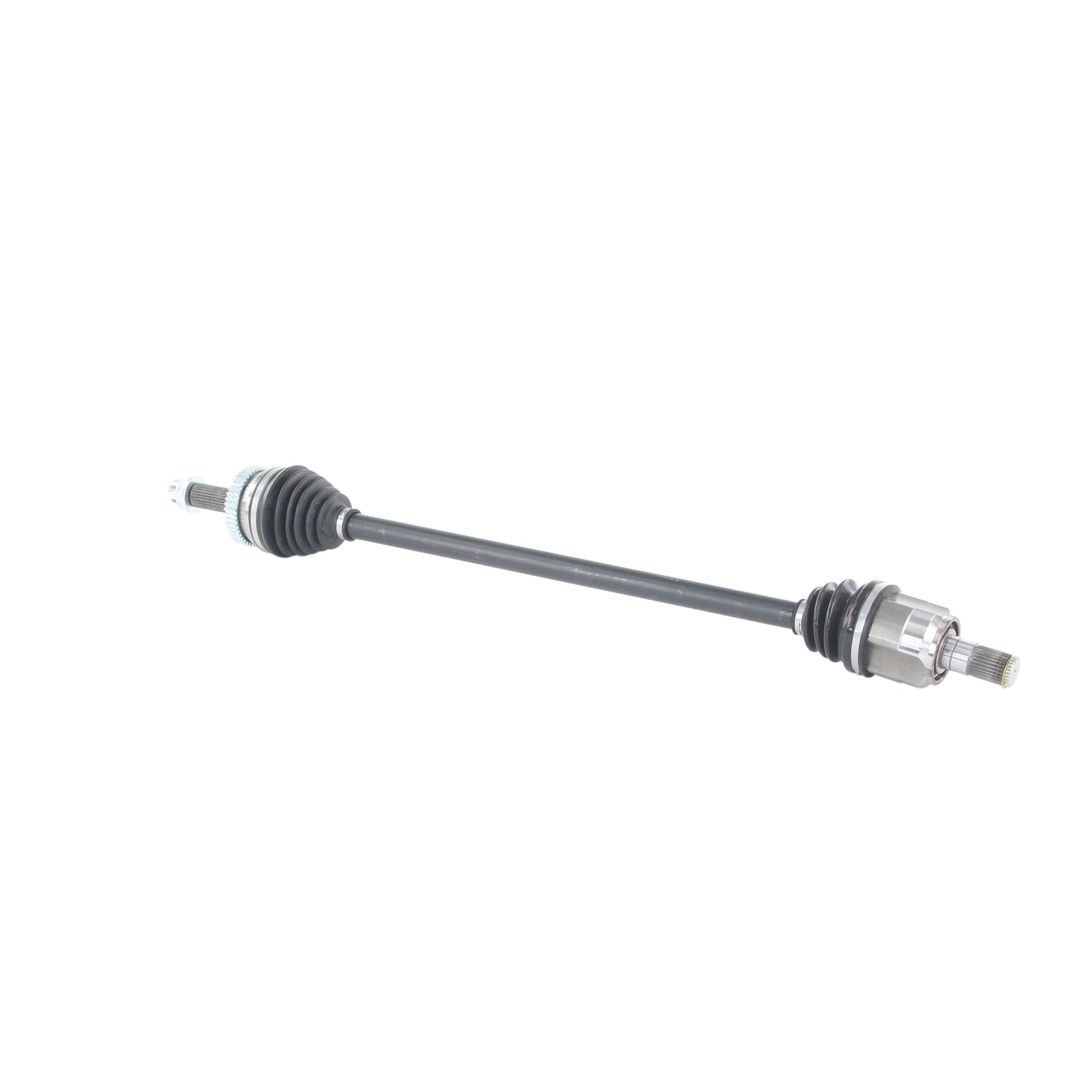

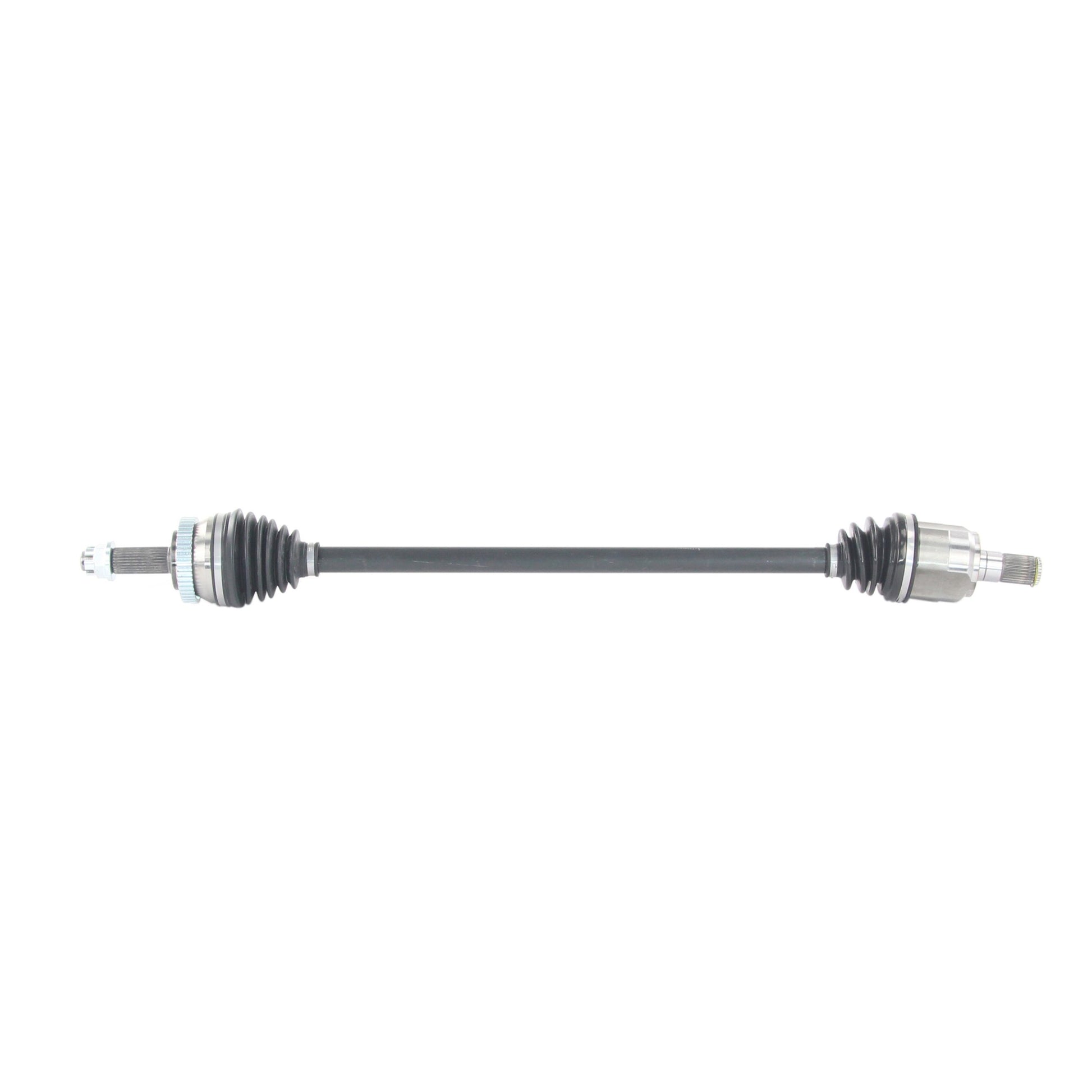

TrakMotive HY-8243 CV Axle Shaft
TrakMotive's HY-8243 is an OE Replacement CV axle shaft, front right position. Both inboard and outboard joints use neoprene boots, and the axle ships complete with its ABS tone ring (48-tooth) and axle nut (M22x1.5 hex, cotter-pin locked) already installed — no separate hardware to source. Fits 2011-2014 Hyundai Sonata L4 2.4L (Theta II engine, automatic transmission).
- OE Replacement CV axle
- Neoprene boots, inboard and outboard joints
- ABS tone ring included (48-tooth)
- Axle nut included — M22x1.5, hex head, cotter-pin locked
- Fits 2011-2014 Hyundai Sonata L4 2.4L (Theta II), front right position, automatic transmission
Specifications
| ABS Ring Type | Toothed |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Shaft Connection Style | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Shaft Bolts | 0 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (mm) | 969 |
| ABS Ring Tooth Count | 48 |
| ABS Tone Ring Included | Yes |
| Axle Nut Height (in) | .86 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 38.15 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2013 HYUNDAI SONATA — Front Right
- 2011-2012 HYUNDAI SONATA Automatic Trans — Front Right
- 2014 HYUNDAI SONATA VIN C — Front Right
