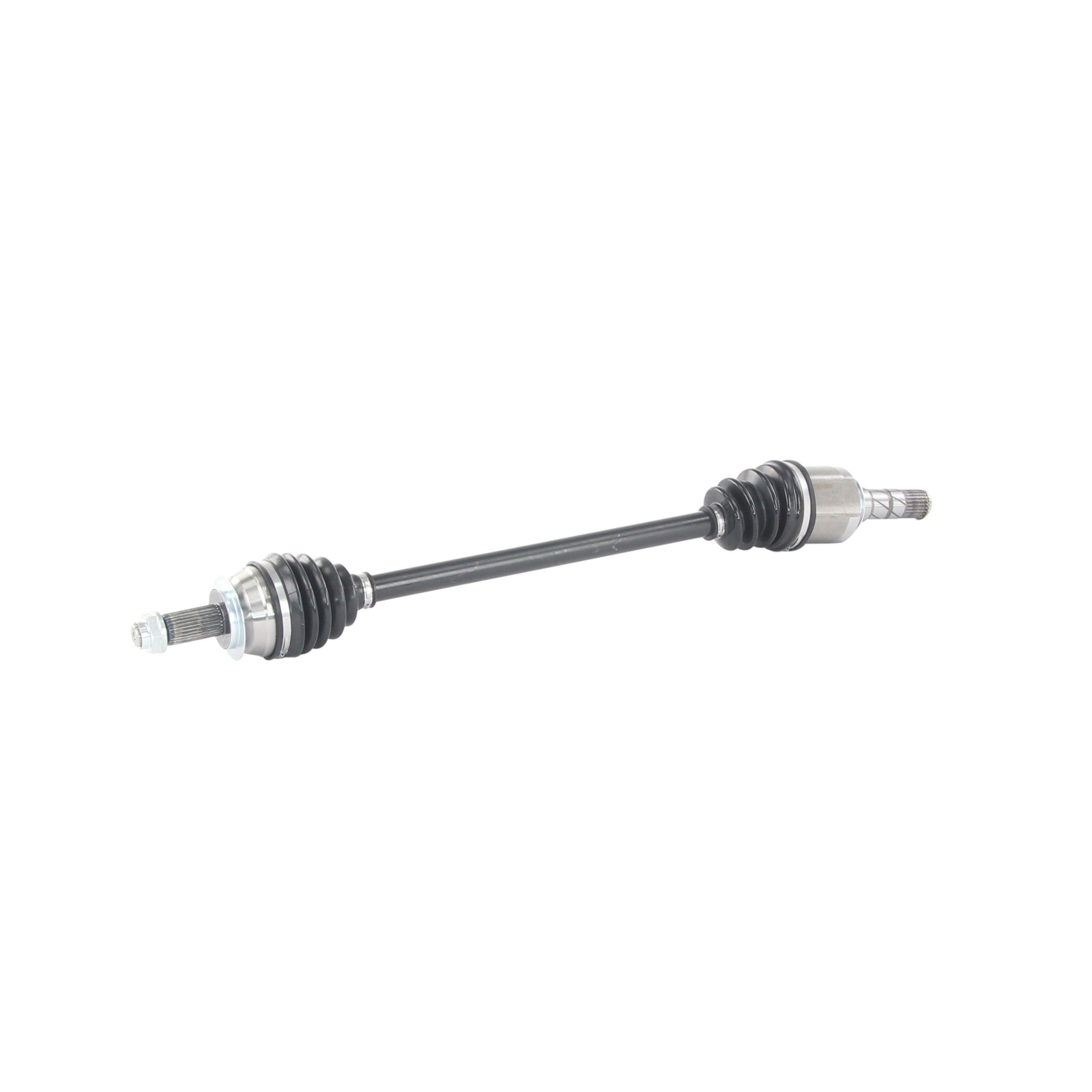

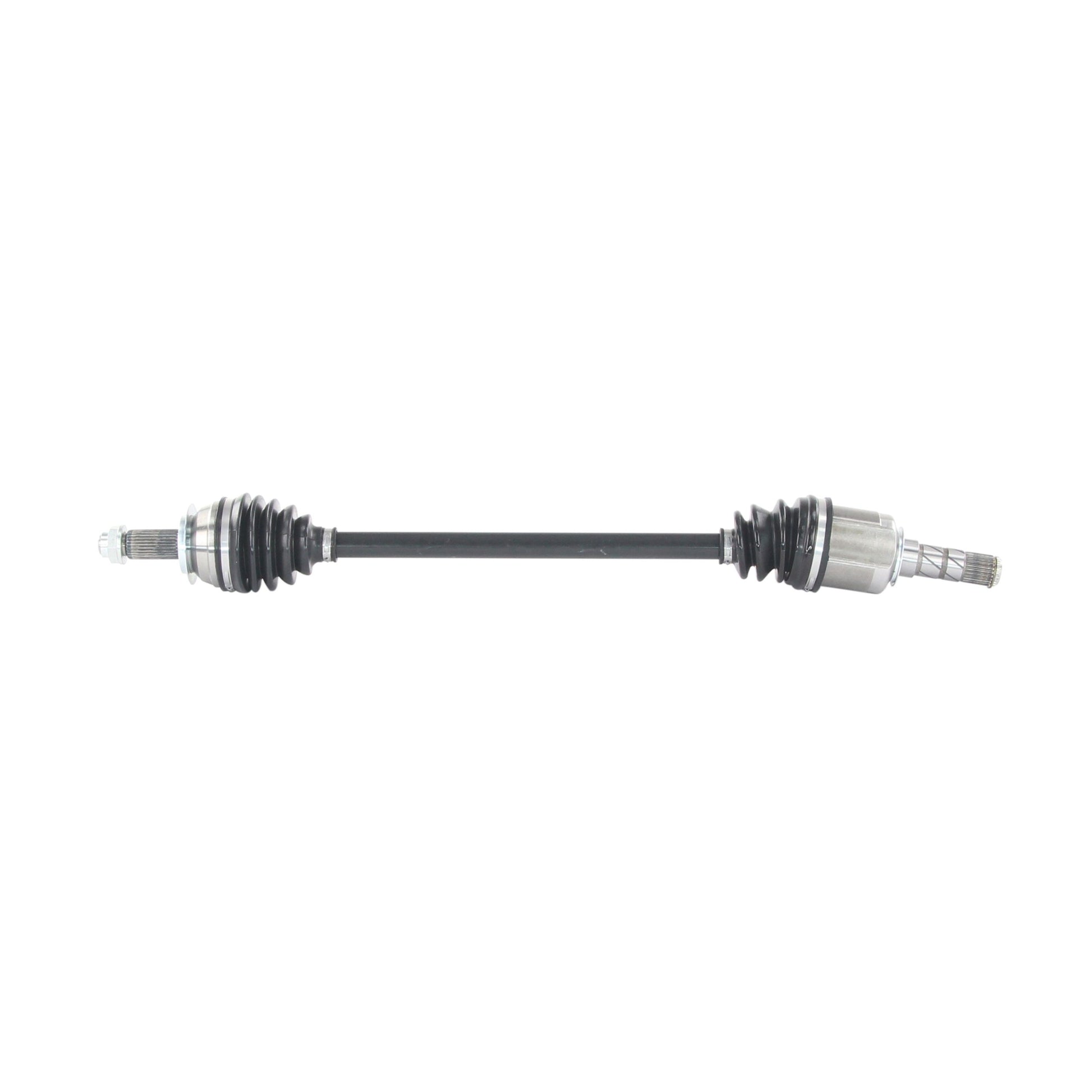

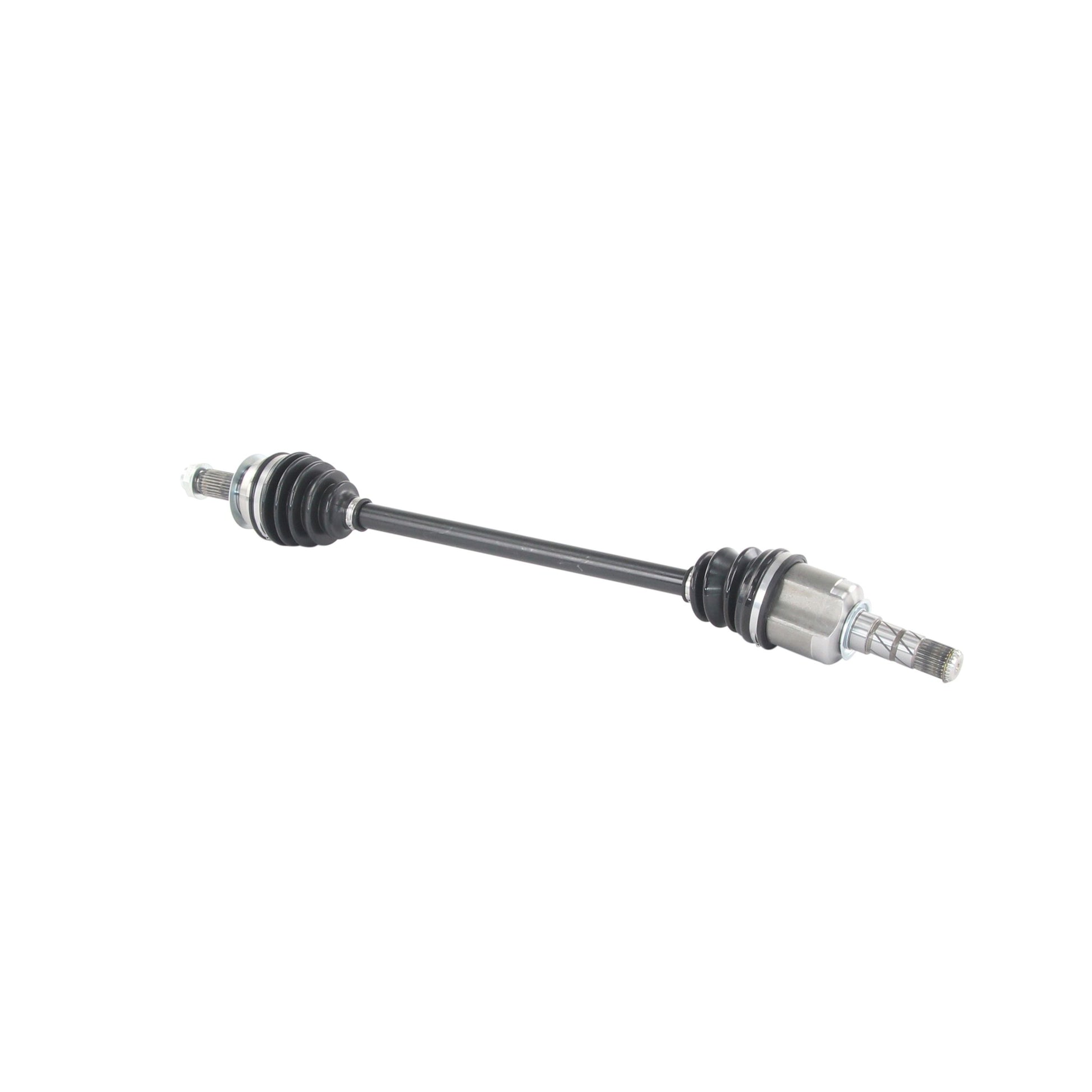

TrakMotive SB-8065 CV Axle Shaft
TrakMotive's SB-8065 is a Premium-grade CV axle shaft engineered as a direct OE replacement, fitting either the front-left or front-right position. Both inboard and outboard joints use neoprene boots, and the axle nut (M22x1.5 hex, stake-locked) is included — no separate hardware to source. Backed by TrakMotive's Limited Lifetime Warranty.
- Premium grade — OE replacement CV axle
- Neoprene boots, inboard and outboard joints
- Axle nut included — M22x1.5, hex head, stake-locked
- TrakMotive Limited Lifetime Warranty
- Fits either front-left or front-right position
Specifications
| ABS Ring Tooth Count | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Locking Type | Stake |
| Inboard Joint Boot Material | Neoprene |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Outboard Shaft Connection Style | Conventional |
| ABS Tone Ring Included | No |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Length (mm) | 35 |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Outboard Joint Type | Conventional |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Shaft Connection Style | Male |
| Number Of Inboard Splines | 25 |
| Outboard Joint Boot Material | Neoprene |
| Overall Compressed Length (mm) | 793 |
| Axle Nut Height (in) | .8 |
| Axle Nut Included | Yes |
| Axle Nut Socket Size | 32 |
| Inboard Joint Type | Male |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Overall Compressed Length (in) | 31.22 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2016 SUBARU CROSSTREK — Front Left
- 2016 SUBARU CROSSTREK — Front Right
- 2017 SUBARU CROSSTREK Automatic CVT Trans — Front Left
- 2017 SUBARU CROSSTREK Automatic CVT Trans — Front Right
- 2010-2013 SUBARU FORESTER — Front Left
- 2010-2013 SUBARU FORESTER — Front Right
- 2012-2014 SUBARU IMPREZA Manual Trans — Front Left
- 2012-2014 SUBARU IMPREZA Manual Trans — Front Right
- 2011 SUBARU IMPREZA WRX — Front Left
- 2014 SUBARU IMPREZA WRX — Front Left
- 2011 SUBARU IMPREZA WRX — Front Right
- 2014 SUBARU IMPREZA WRX — Front Right
- 2012-2014 SUBARU IMPREZA WRX Limited — Front Left
- 2012-2014 SUBARU IMPREZA WRX Limited — Front Right
- 2012-2014 SUBARU IMPREZA WRX Premium — Front Left
- 2012-2014 SUBARU IMPREZA WRX Premium — Front Right
- 2012-2014 SUBARU IMPREZA WRX STI — Front Left
- 2012-2014 SUBARU IMPREZA WRX STI — Front Right
- 2012-2014 SUBARU IMPREZA WRX STI Limited — Front Left
- 2012-2014 SUBARU IMPREZA WRX STI Limited — Front Right
- 2013-2015 SUBARU XV CROSSTREK — Front Left
- 2013-2015 SUBARU XV CROSSTREK — Front Right
