TrakMotive

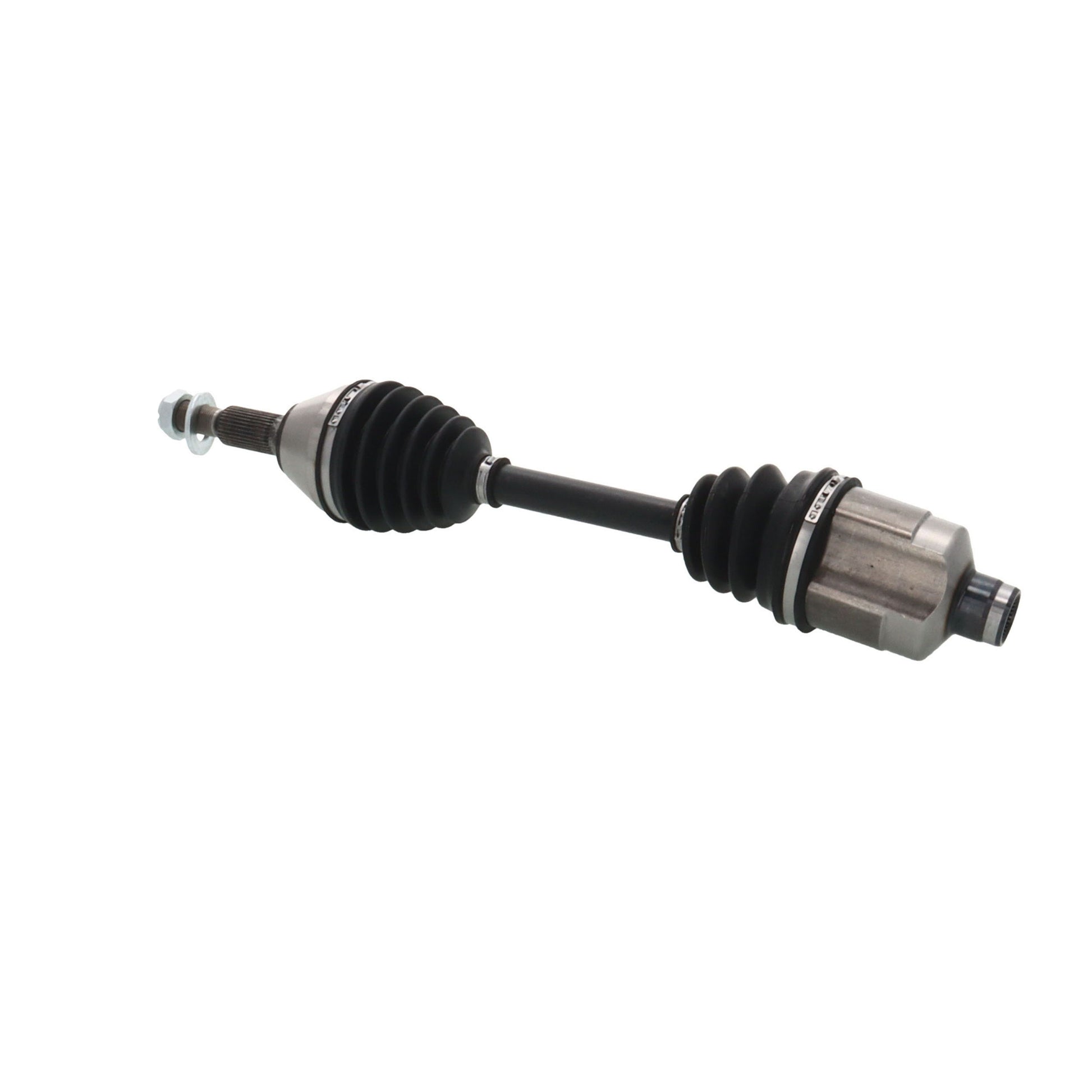

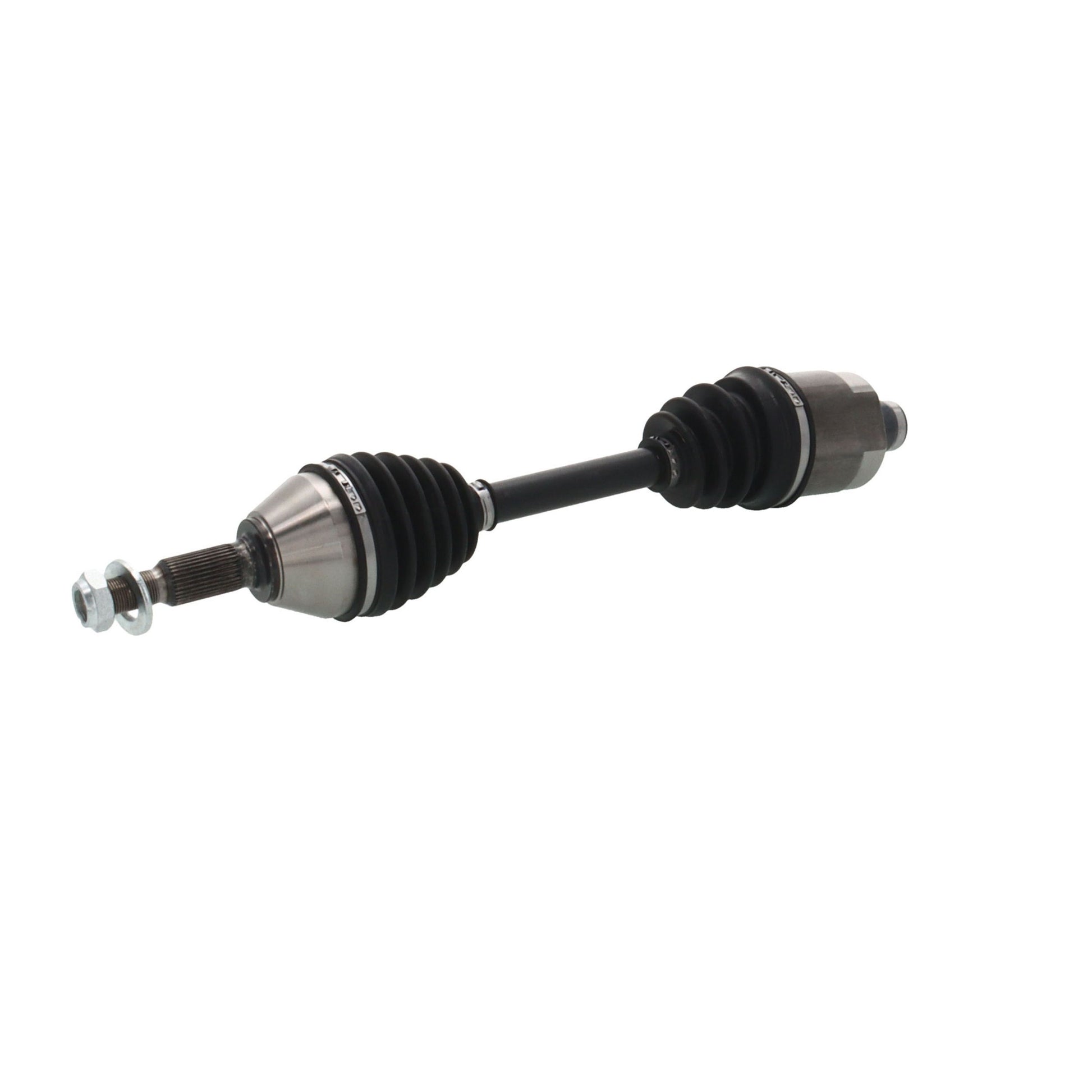

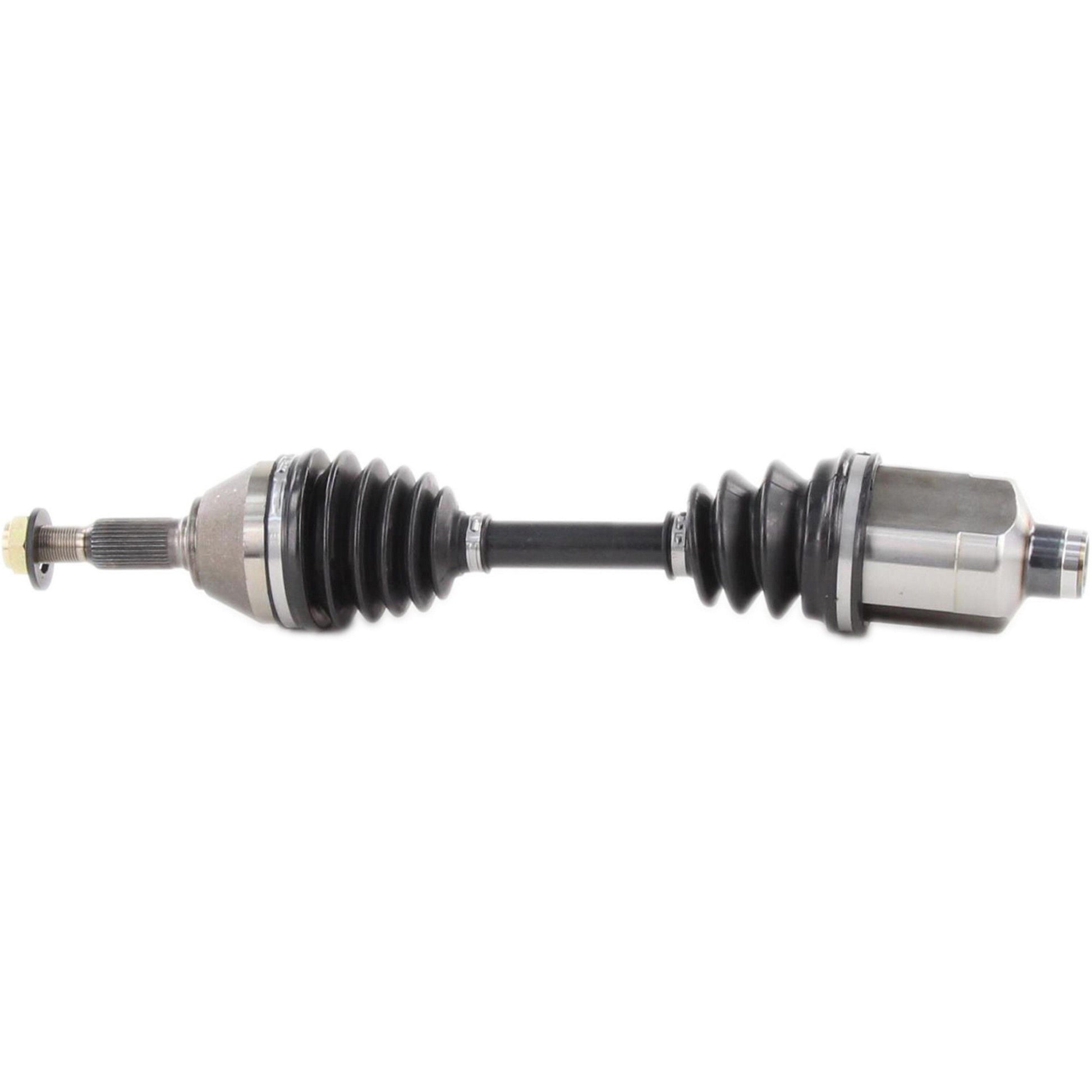

TrakMotive SN-8026 CV Axle Shaft
TrakMotive SN-8026 CV Axle Shaft
Regular price
$72.90 USD
Regular price
$78.51 USD
Sale price
$72.90 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features
TrakMotive SN-8026 CV Axle Shaft
TrakMotive's SN-8026 is a Premium-grade CV axle shaft engineered as a direct OE replacement, fitting either the front-left or front-right position. Fits 2005-2010 Chevrolet Cobalt, 2006-2011 Chevrolet HHR, 2007-2009 Pontiac G5, and 2005-2007 Saturn Ion.
- Premium grade — OE replacement CV axle
- Fits either front-left or front-right position
- Fits Chevrolet Cobalt/HHR, Pontiac G5, Saturn Ion
Specifications
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .56 |
| Axle Nut Height (mm) | 14 |
| Axle Nut Hex Size (in) | 1.17 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.33 |
| Axle Nut Length (mm) | 35 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Socket Size | 30 |
| Axle Nut Thread Size | M20x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 20.67 |
| Overall Compressed Length (mm) | 525 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2005-2010 CHEVROLET COBALT — Front Left
- 2005-2010 CHEVROLET COBALT — Front Right
- 2006-2011 CHEVROLET HHR — Front Left
- 2006-2011 CHEVROLET HHR — Front Right
- 2007-2009 PONTIAC G5 — Front Left
- 2007-2009 PONTIAC G5 — Front Right
- 2005-2007 SATURN ION — Front Left
- 2005-2007 SATURN ION — Front Right
