TrakMotive

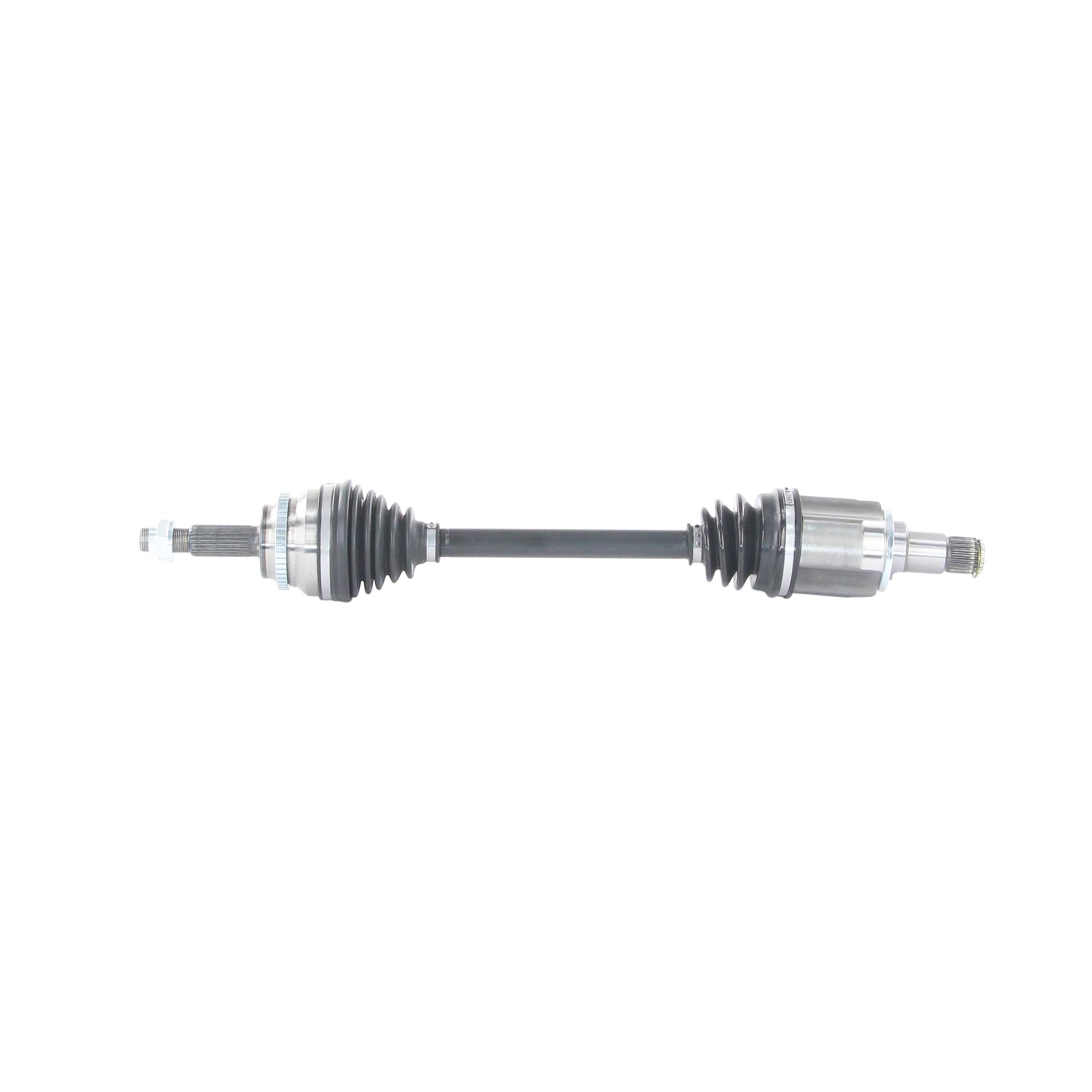

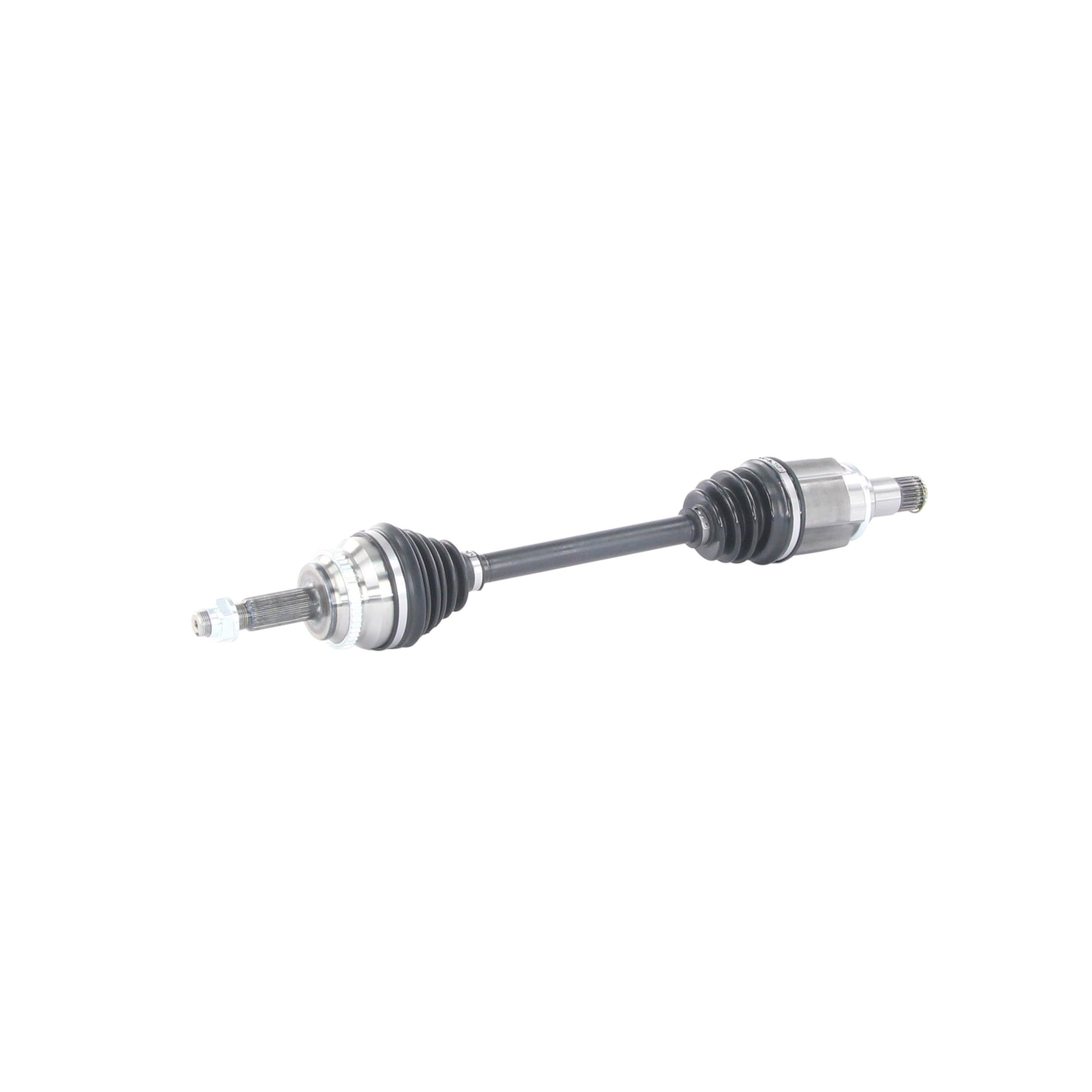

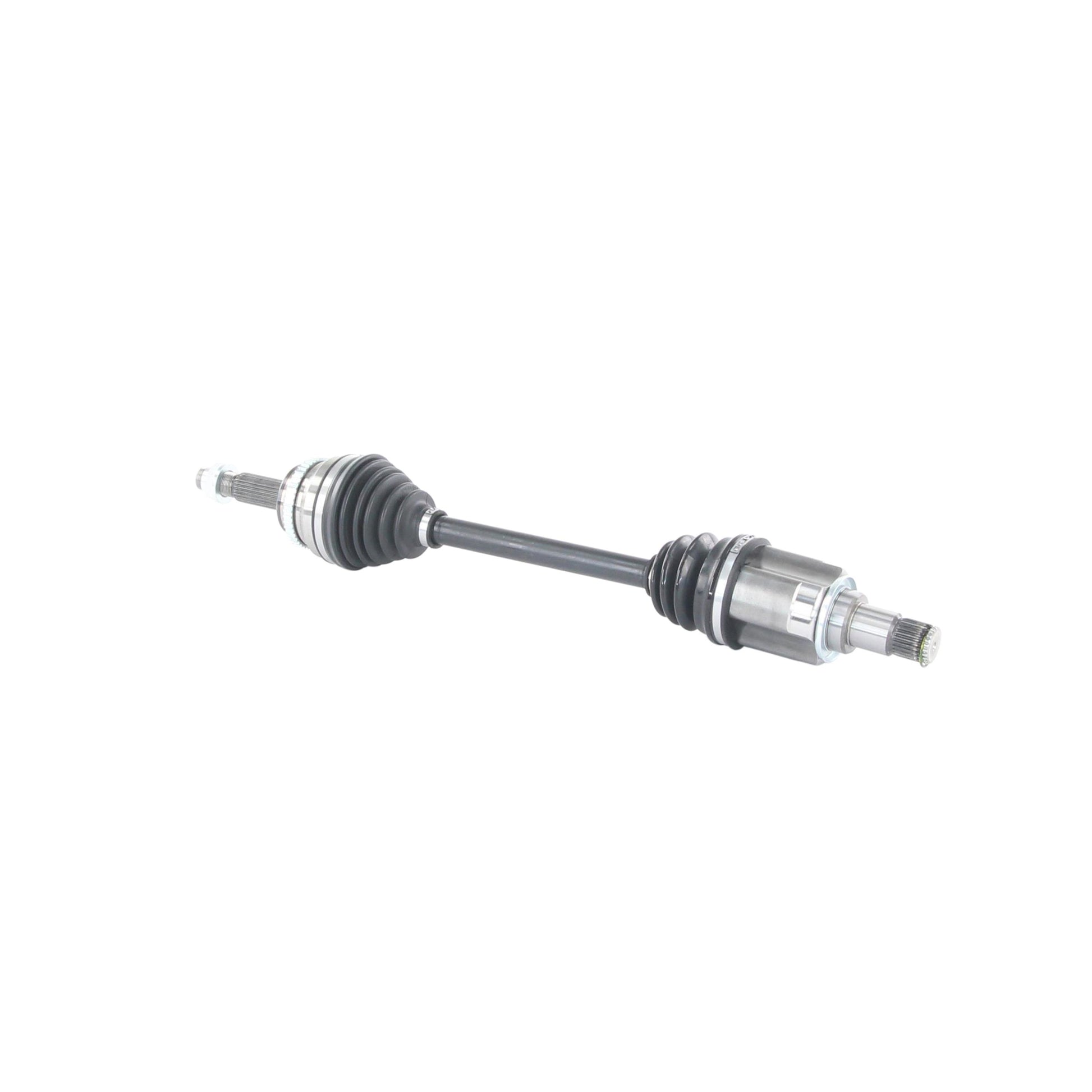

TrakMotive TO-8212 CV Axle Shaft
TrakMotive TO-8212 CV Axle Shaft
Regular price
$102.90 USD
Regular price
$110.82 USD
Sale price
$102.90 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features
TrakMotive TO-8212 CV Axle Shaft
TrakMotive's TO-8212 is a Premium-grade CV axle shaft engineered as a direct OE replacement. Both inboard and outboard joints use neoprene boots, and the axle ships complete with its ABS tone ring (48-tooth) and axle nut (M22x1.5 hex, stake-locked) already installed — no separate hardware to source. Backed by TrakMotive's Limited Lifetime Warranty. Fits 2005-2006 Toyota Camry L4 2.4L, front left position only — not for hybrid models.
- Premium grade — OE replacement CV axle
- Neoprene boots, inboard and outboard joints
- ABS tone ring included (48-tooth)
- Axle nut included — M22x1.5, hex head, stake-locked
- TrakMotive Limited Lifetime Warranty
- Fits 2005-2006 Toyota Camry L4 2.4L — front left position only (not for hybrid)
Specifications
| ABS Ring Type | Toothed |
| Axle Nut Head Type | Hex |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Shaft Connection Style | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Shaft Bolts | 0 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (mm) | 671 |
| ABS Ring Tooth Count | 48 |
| ABS Tone Ring Included | Yes |
| Axle Nut Height (in) | 1 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Included | Yes |
| Axle Nut Length (mm) | 37 |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.42 |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2005-2006 TOYOTA CAMRY — Front Left
