Warn 101135 AXON 35 WINCH

Warn 101135 AXON 35 WINCH

Regular price $540.00 USD
Regular price Sale price $540.00 USD
Sale Sold out
Shipping calculated at checkout.

10 in stock

Quantity
Description & Features

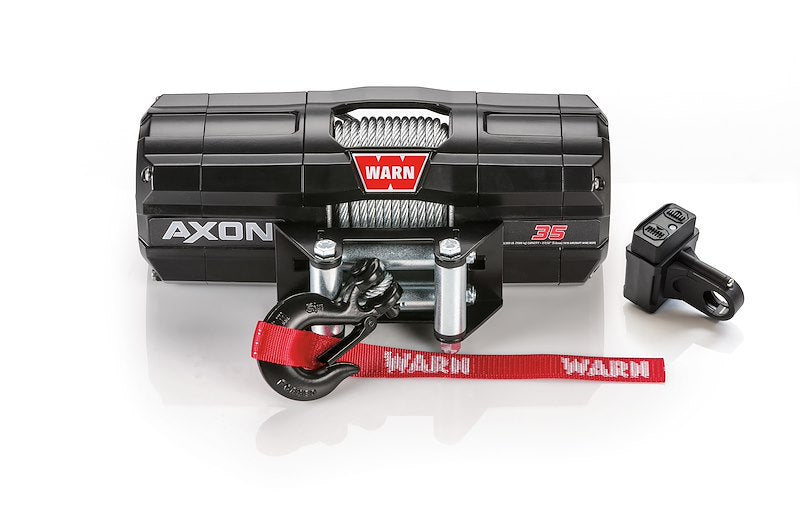

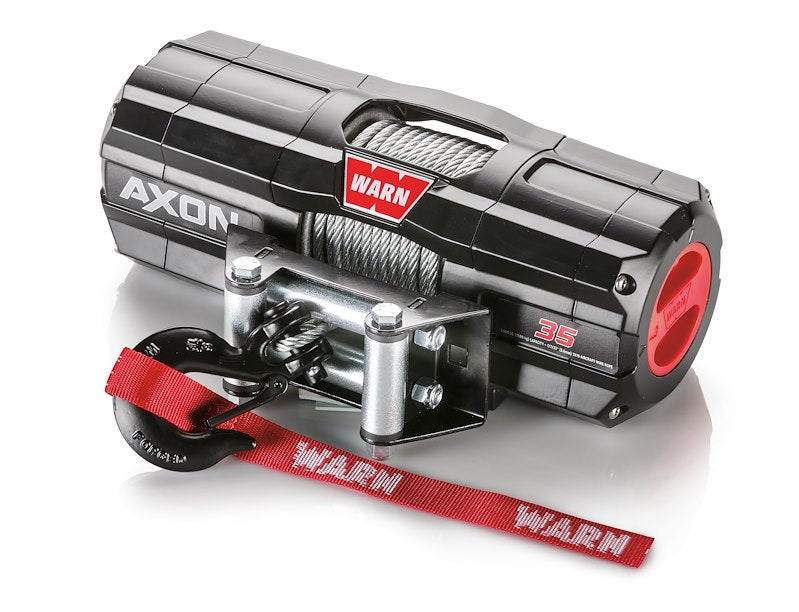

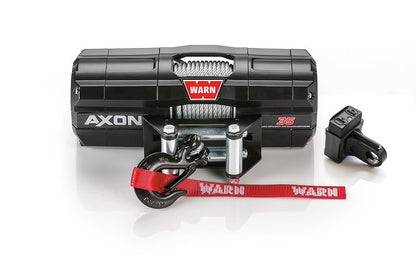

Warn 101135 AXON 35 WINCH

Add some brainpower to your horsepower. With advanced Motactor (motor/contactor) digital technology, IP68 rated, and a compact, easy-to-install design, the WARN AXON is the best powersports winch on the market. With pulling capacities from 3,500 to 5,500 lbs., these state-of-the-art winches will help you go prepared for any situation.

  • AXON 35 includes 50-ft. of durable 7/32-in. steel rope, roller fairlead, and black hook
  • Load-holding brake for great control
  • Smooth and reliable all-metal three-stage planetary gear train
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
  • Designed, engineered, and assembled in the USA
  • Stout 3,500 lb. capacity for riders who push the limits
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • Digital control offers never-before seen levels of reliability and user feedback, including load andtemperature info
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • IP68 waterproofing keeps water and the elements out
  • Rockerbar digital control switch with handlebar mount adaptor
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
Specifications
Brake Activation Automatic
Brake Type Drum
D Shackle Included No
Fairlead Type Roller
Free Spooling Yes
Gear Ratio 168:1
Gearing 3-Stage Planetary
Length 13.3
Motor Type Permanent Magnet
Mounting Hole Quantity 4
Power Out Yes
Type Electric
Cable Diameter 0.21875
Cable Length 50
Cable Material Steel

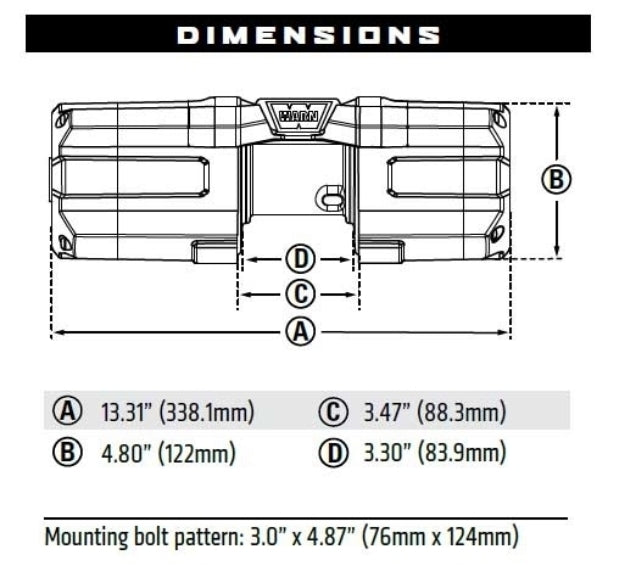

Maximum Height 4.8
Maximum Width 4.6
Motor Voltage 12
Mounting Bolt Pattern Length 4.87
Mounting Bolt Pattern Width 3
Rated Line Pull 3500
Voltage 12
Requires Mount Yes
Mount Type Fixed Mount
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING CA Proposition 65 Yes
Packaging Information

Weight: 31.5 lbs
Dimensions: 18 x 10 x 6 IN
