Warn 110010 ZEON XD 10-S WITH 100' OF 3/8" SPYDURA SYNTHETIC ROPE
Warn 110010 ZEON XD 10-S WITH 100' OF 3/8" SPYDURA SYNTHETIC ROPE
10 in stock
Couldn't load pickup availability
Description & Features

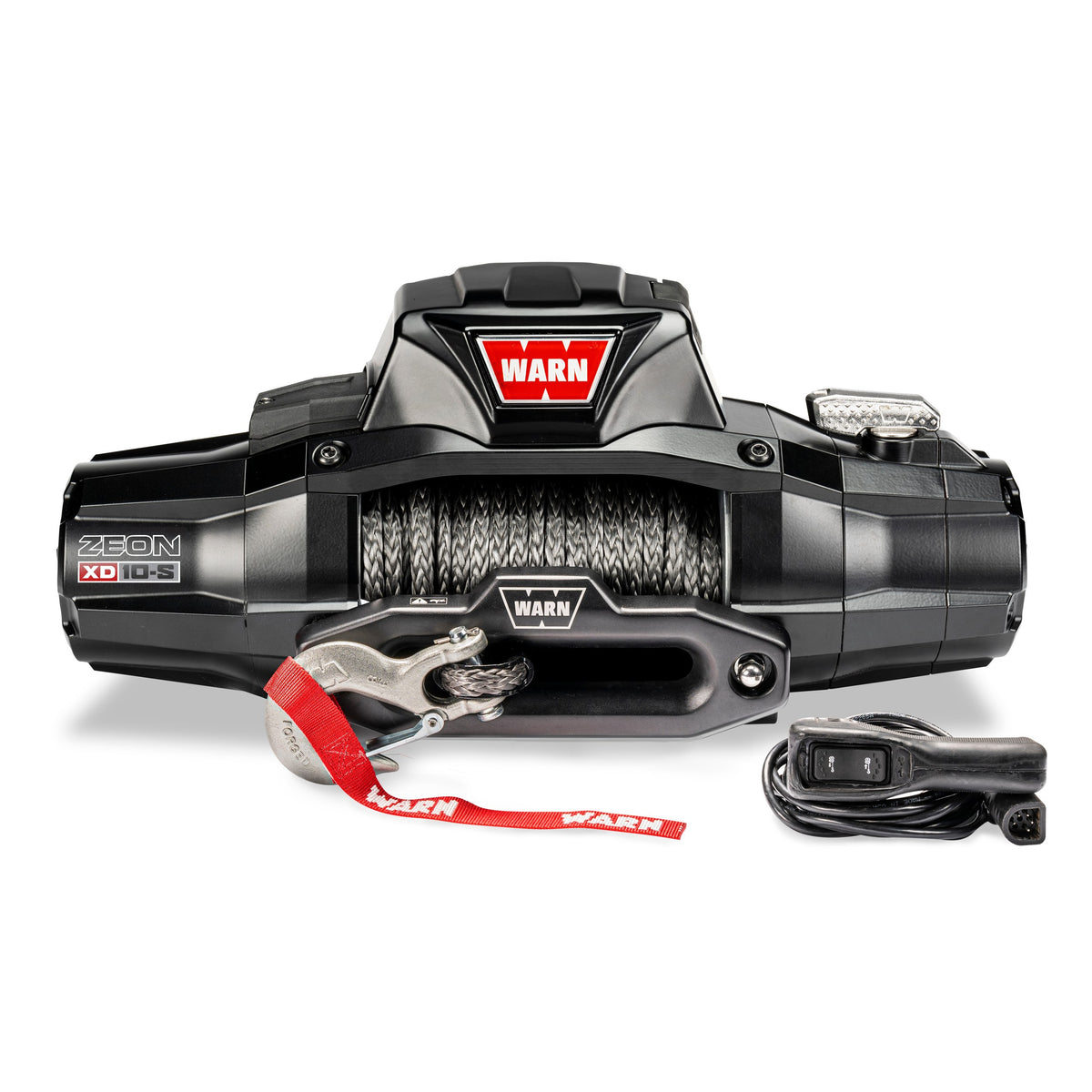

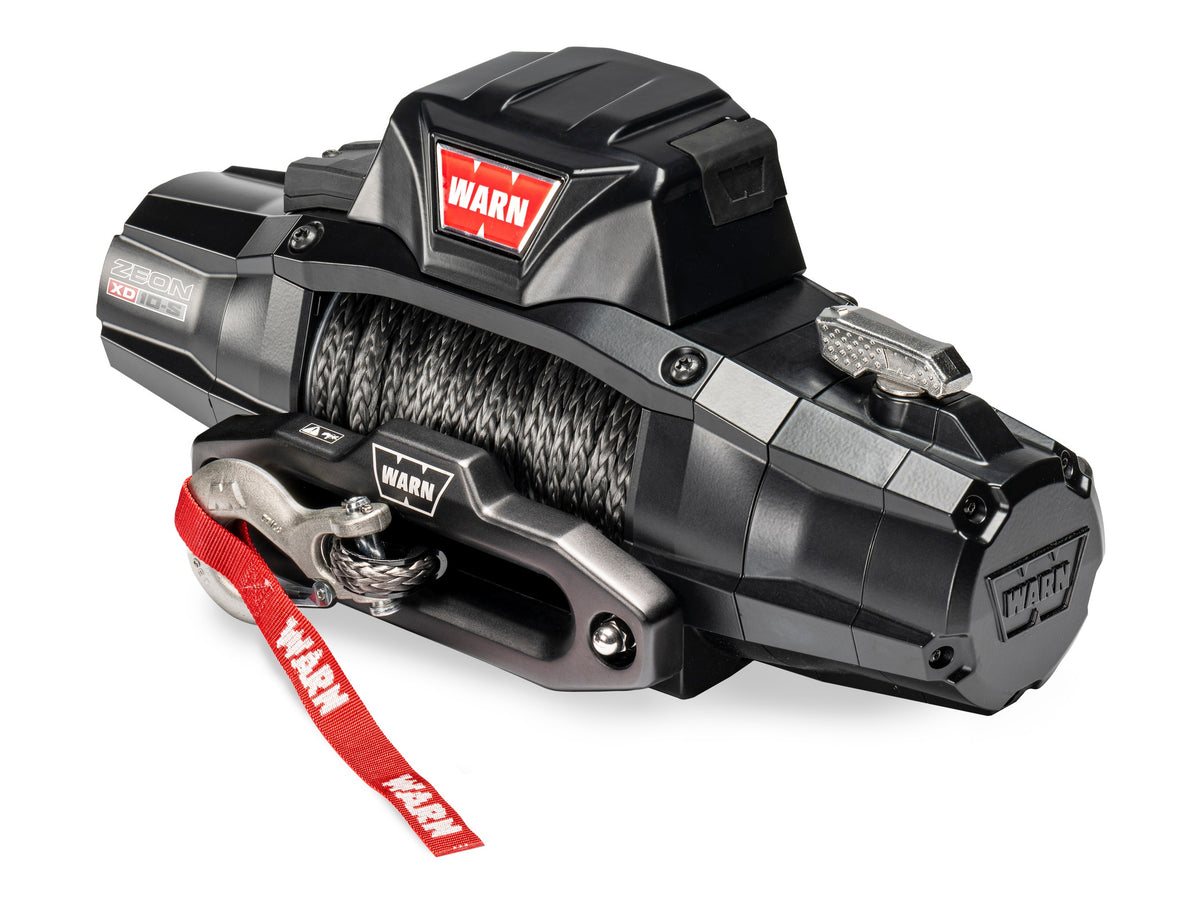

Warn 110010 ZEON XD 10-S WITH 100' OF 3/8" SPYDURA SYNTHETIC ROPE
Advanced, capable, and tough, the 10,000 lb. capacity ZEON XD10-S is perfect for mid-sized trucks, SUVs, and Jeeps, and is built to endure over the long haul. As the evolution of the ZEON family, this is the go-to winch for off-roaders who value reliability, durability, and performance, no matter where adventure takes you. With upgraded waterproofing, increased corrosion protection, and best-in-class linespeeds, ZEON XD is ready for when you need it most. Plus, they're designed, engineered, and assembled in the USA.
- High-performance motor and geartrain deliver blazing fast no-load line speeds of 31 ft/min
- Includes HUB Wireless Receiver for 100'+ of range when paired with the WARN Hub app. Ruggedized corded remote with 12' lead also included
- Includes 80' of lightweight, easy-to-handle 3/8" Spydura Pro synthetic rope with a large-radius black forged-aluminum hawse fairlead
- IP68 water submersion and IP69K high pressure spray rating, achieved through the use of automotive-grade O-ring sealing
- OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XD stays pristine for years to come
- Full metal armor safeguards components from impact, damage, and trail debris.
- Includes HUB Wireless Receiver for 100'+ of range when paired with the WARN Hub app. Ruggedized corded remote with 12' lead also included.
- Albright contactor control and bus bars provide ultimate electrical reliability
- Includes 100' of lightweight, easy-to-handle 3/8" Spydura synthetic rope with a large-radius black forged-aluminum hawse fairlead
- Industry-leading warranty: Limited lifetime mechanical, seven year electrical all backed by a global service network.
- Full metal armor safeguards components from impact, damage, and trail debris
Specifications
| Brake Activation | Automatic |
| Cable Material | Synthetic Rope |
| D Shackle Included | No |
| Fairlead Type | Hawse |
| Free Spooling | Yes |
| Gear Ratio | 141:1 |
| Gearing | 3-Stage Planetary |
| Hand Saver | Yes |
| Motor Type | Series Wound |
| Mounting Hole Quantity | 4 |
| Power Out | Yes |
| Remote Included | Yes |
| Remote Type | Wireless |
| Type | Electric |
| Cable Diameter | 0.375 |
| Cable Length | 100 |
| Length | 23.9 |
| Maximum Height | 10.5 |
| Maximum Width | 7.1 |
| Motor Voltage | 12 |
| Mounting Bolt Pattern Length | 4.5 |
| Mounting Bolt Pattern Width | 10 |
| Rated Line Pull | 10000 |
| Solenoid Type | Yes |
| Voltage | 12 |
| Brake Type | Cone |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
| WARNING CA Proposition 65 | Yes |
Packaging Information
Weight: 90 lbs
Dimensions: 26.13 x 20 x 8.25 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
